MEAN WELL EPS-65-48-C SMPSU 48 V 1.36 A 65.28 W

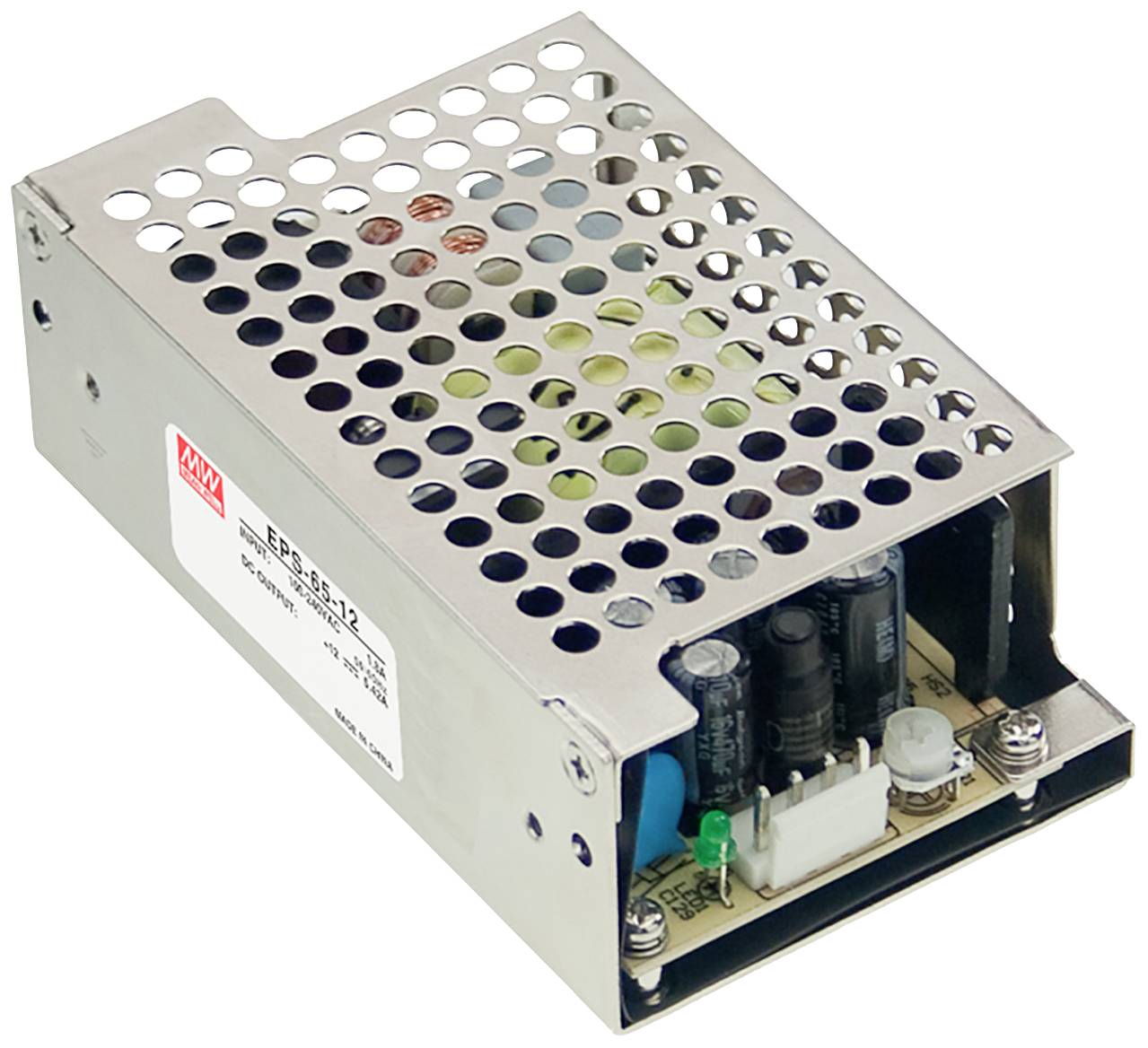

Metal casing of an electronic power supply with visible ventilation holes and internal components.

Metal casing of an electronic power supply with visible ventilation holes and internal components.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SNT CASE 65.28W 48V/11A

Output 48 V / 1.36 A
Power 65.28 W
Connector

Technical specifications

Product type: SMPSU

Input voltage (max.): 370 V DC
264 V AC

Max. output current: 1.36 A

Output current (max.) - rounded: 1.36 A

Min. input voltage: 127 V DC
90 V AC

Dim: (L x W x H) 103.4 x 62 x 37 mm

Output voltage (max.): 48 V

Connection: Connector

: 65.28 W

No. of outputs: 1 x

Type: closed

Weight: 300 g

Width: 62 mm

Height: 37 mm

Length: 103.4 mm

Type: EPS-65-48-C

Max. temperature: +70 °C

Min. temperature: -30 °C

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2900927 MEAN WELL EPS-65-48-C SMPSU 48 V 1.36 A 65.28 W

User & Safety Instructions

User & Safety Instructions 2900927 MEAN WELL EPS-65-48-C SMPSU 48 V 1.36 A 65.28 W

Warranty Terms

Warranty Terms 2900927 MEAN WELL EPS-65-48-C SMPSU 48 V 1.36 A 65.28 W
