Buy MEAN WELL EPS-65S-24 SMPSU 27.6 V DC 2.71 A 65 W

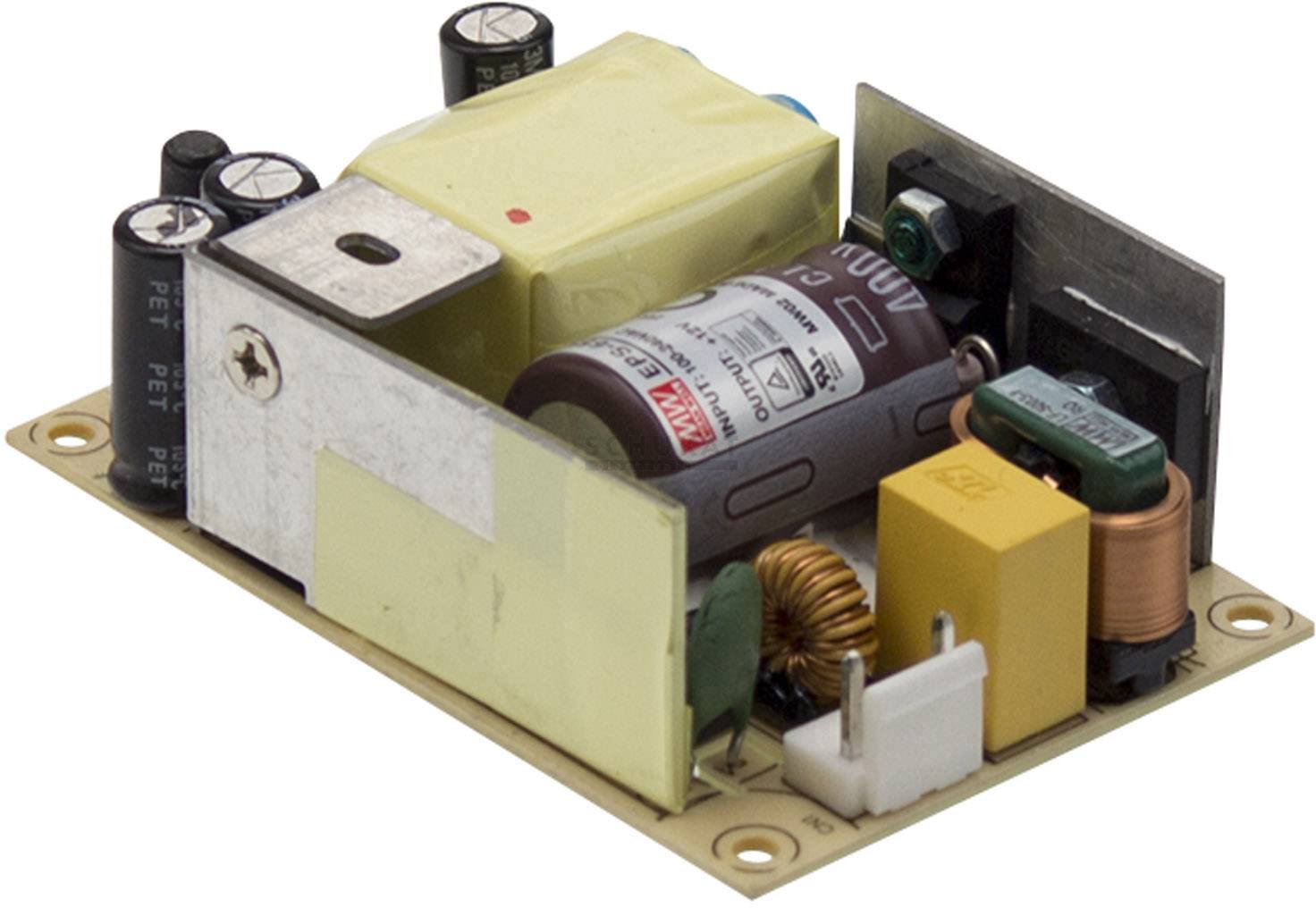

Electronic switched-mode power supply module with various components such as capacitors and inductors mounted on a printed circuit board.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEANWELL power supply series EPS-65S open-frame Single Output Power: 65 W

Output 27.6 V DC / 2.71 A
Power 65 W
Pin strip for nylon crimp connectors

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC

Max. output current: 2.71 A

Output current (max.) - rounded: 2.71 A

Min. input voltage: 80 V AC

Dim: (L x W x H) 76.2 x 50.8 x 24 mm

Output voltage (max.): 27.6 V DC

Connection: Pin strip for nylon crimp connectors

: 65 W

No. of outputs: 1 x

Type: open

Weight: 110 g

PSU features: Adjustable voltage output

Type: Pulsed

Width: 50.8 mm

Height: 24 mm

Length: 76.2 mm

Type: EPS-65S-24

MTBF: 959100 h

Output current (min.): 0 A

Output voltage (min.): 22.8 V DC

No. of inputs: 1 x

PFC: No

Max. temperature: +70 °C

Min. temperature: -30 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1838117 MEAN WELL EPS-65S-24 SMPSU 27.6 V DC 2.71 A 65 W

User & Safety Instructions

User & Safety Instructions 1838117 MEAN WELL EPS-65S-24 SMPSU 27.6 V DC 2.71 A 65 W

Warranty Terms

Warranty Terms 1838117 MEAN WELL EPS-65S-24 SMPSU 27.6 V DC 2.71 A 65 W

Description

In order to meet the requirements of the industrial and control market for ever-smaller and energy-saving power supplies for installation in electronics products, has mean corrugated the series EPS-65S (65 W) with only 3 x 2 inch size was introduced. Special features of the series EPS-65S are the extremely low power consumption of less than resistor 0.1 W in the so-called load-free operation, the low profile (less than 1 HE, only 24 mm) and ability to function at heights of up to 5000 m. An LED display provides information about the operating status. The efficiency is 91%, the cooling takes place in these models by free air circulation. Suitable applications of the series EPS-65S of mean corrugated are switching cabinet systems, industrial electronic devices, electro-mechanical instruments, factory automation systems and electronic devices which have a low idle power demand.
