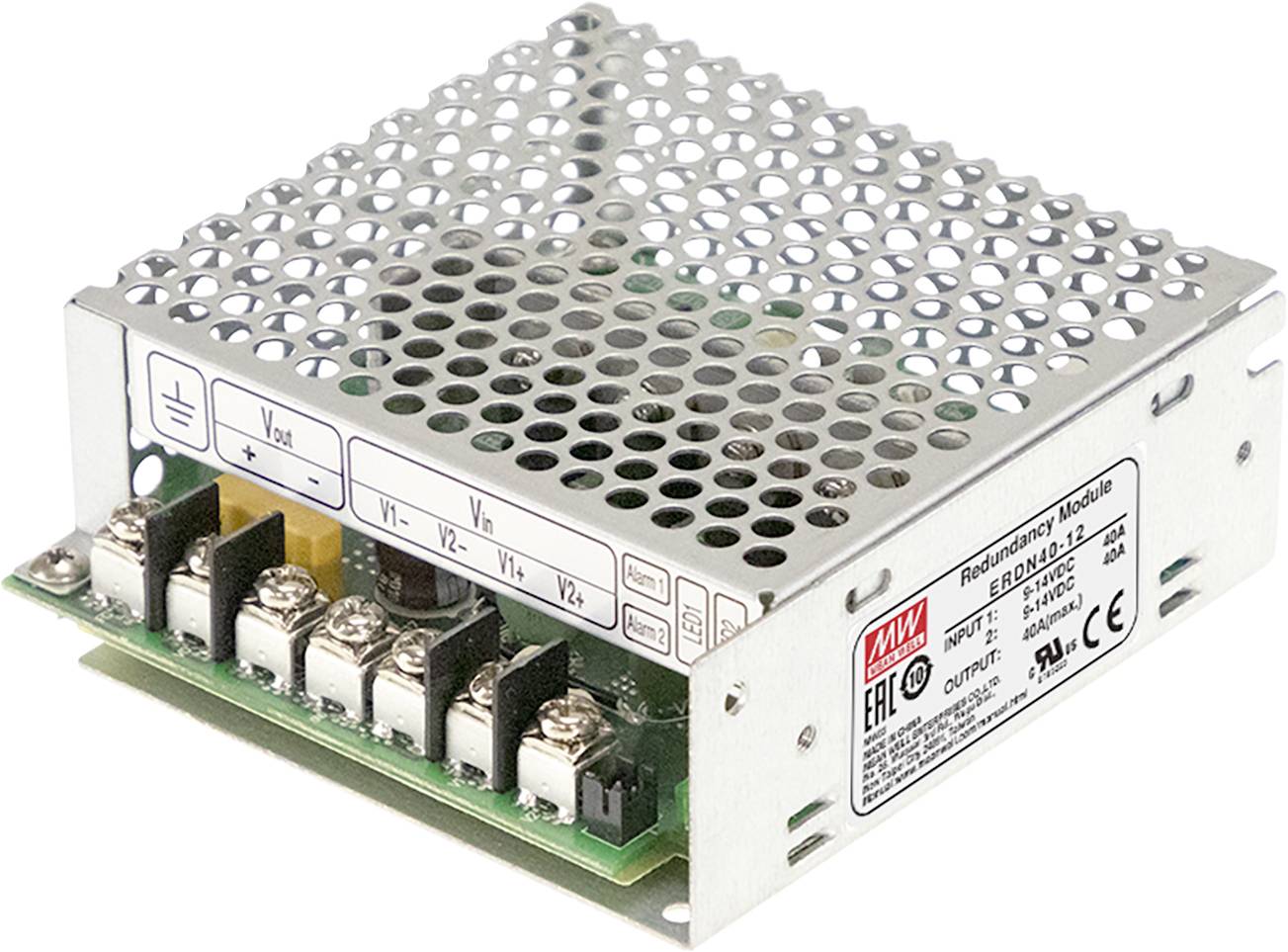

MEAN WELL ERDN40-24 Redundancy module 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Meanwell redundancy module series ERDN40 Enclosed output current: 40A
- Closed design
- Supports 1+1 and N+1 redundancy systems
- Can be mounted directly on DIN rail
- 2-channel input and 1-channel output
- 2-channel DC OK integrated signaling and alarm relay
- LED status indicator
- Cooling by free air convection
- Safety standards: UL62368-1 and others
- EMC standards: EN55032 class B, EN61000-4-2 and others
- This text is machine translated.
Technical specifications
- Nominal input voltage
24 V/DC
- Product type
Redundancy module
- Min. input voltage
19 V DC
- Inputs
2
- Input voltage (max.)
29 V DC
- Max. output current
40 A
- Output current (max.) - rounded
40 A
- Connection
Screw terminal
- Dim
(L x W x H) 97 x 99 x 36 mm
- Weight
276 g
- Manufacturer part #
ERDN40-24
- MTBF
5706100 h
- Width
99 mm
- Height
36 mm
- Length
97 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
ERDN40-24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2199596 MEAN WELL ERDN40-24 Redundancy module 40 A
User & Safety Instructions
User & Safety Instructions 2199596 MEAN WELL ERDN40-24 Redundancy module 40 A
Warranty Terms
Warranty Terms 2199596 MEAN WELL ERDN40-24 Redundancy module 40 A
Description
Features
- Closed design
- Supports 1+1 and N+1 redundancy systems
- Can be mounted directly on DIN rail
- 2-channel input and 1-channel output
- 2-channel DC OK integrated signaling and alarm relay
- LED status indicator
- Cooling by free air convection
- Safety standards: UL62368-1 and others
- EMC standards: EN55032 class B, EN61000-4-2 and others
