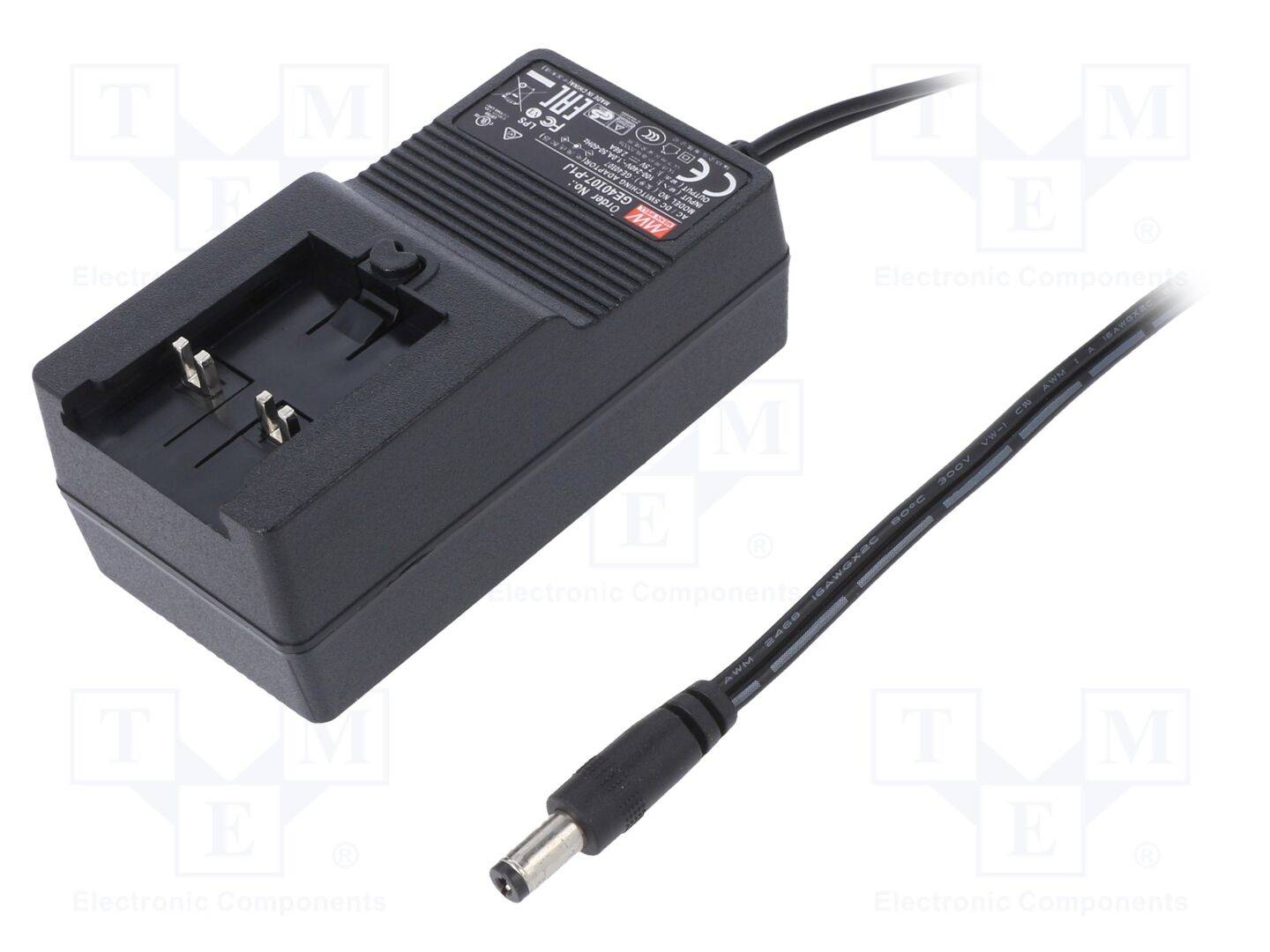

MEAN WELL GE40I07-P1J Mains PSU (fixed voltage) 7.5 V DC 2.66 A 20 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Meanwell Universal Plug power supplies series GE40 Single Output Power: 40W for AC plug adapter
- Plug-in power supply for input plug adapter
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage
- Energy efficiency level VI (DOE)
- This text is machine translated.
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Type
Power supply unit
- Max. output current
2.66 A
- Output voltage
7.5 V DC
- Output current (max.) - rounded
2.66 A
- Output
5.5/2.1 coaxial connector
- Input voltage
115 V AC
240 V AC
20 W
- Dim
(L x W x H) 94 x 48.4 x 40 mm
- Connection
Cable + connector
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
90 V AC
135 V DC
- EuP Status
Level VI
- Weight
200 g
- Cable length
1.00 m
- Width
48.4 mm
- Height
40 mm
- Length
94 mm
- Type
GE40I07-P1J
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2199608 MEAN WELL GE40I07-P1J Mains PSU (fixed voltage) 7.5 V DC 2.66 A 20 W
Information
Information 2199608 MEAN WELL GE40I07-P1J Mains PSU (fixed voltage) 7.5 V DC 2.66 A 20 W
Warranty Terms
Warranty Terms 2199608 MEAN WELL GE40I07-P1J Mains PSU (fixed voltage) 7.5 V DC 2.66 A 20 W
Description
Features
- Plug-in power supply for input plug adapter
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage
- Insulation category II
- Low idle power
- Energy efficiency level VI (DOE)
Hints
The input plugs must be ordered separately.
