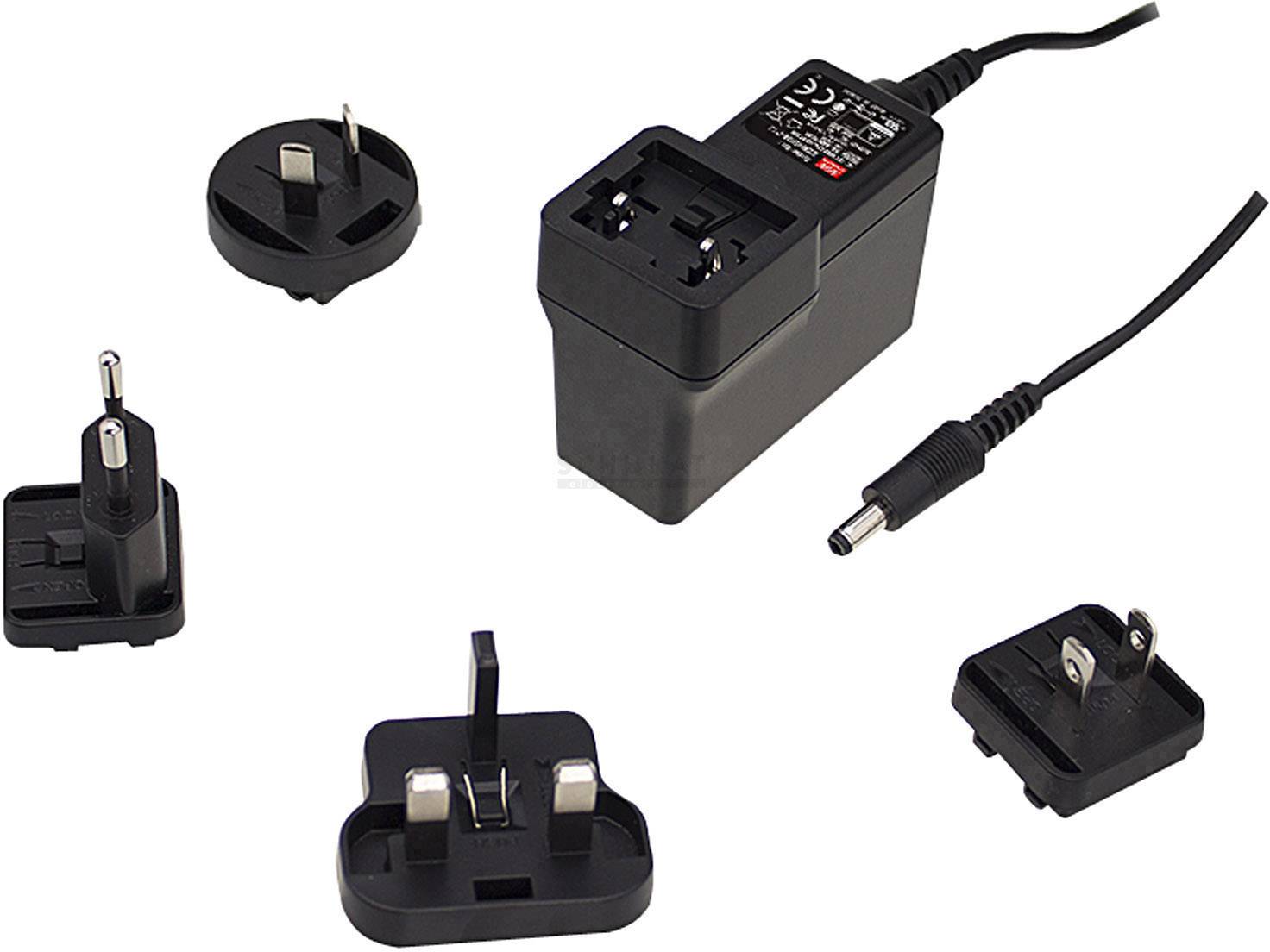

MEAN WELL GEM60I09-P1J Mains PSU (fixed voltage) 9 V DC 5.5 A 49.5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 2 Piece(s) available
Highlights & Details
MEANWELL Medical plug-in power supplies series GEM 60I Single Output 60 W for AC plug adapter
- Plug-in power supply for input plug adapter
- Universal input
- Overload protection by circuit breaker (Hiccup), auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level V
- This text is machine translated.
Technical specifications
- Input plug must be ordered separately.
- Best.Nr.:
- 001439281 AC-PLUG-AU 2
- 001439282 AC-PLUG-EU2
- 001439283 AC-PLUG-MIX 2
- 001439284 AC-PLUG-UK 2
- 001439285 AC-PLUG-US2
- Product type
Mains PSU (fixed voltage)
- Used at
Indoors
Portable
Fixed
Mains socket
- Type
Pulsed
- Max. output current
5.5 A
- Output voltage
9 V DC
- Output current (max.) - rounded
5.5 A
- Output
5.5/2.1 coaxial connector
- Input voltage
115 V AC
230 V AC
49.5 W
- Dim
(L x W x H) 75.5 x 39.1 x 56.2 mm
- Connection
5.5/2.1 coaxial connector
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
80 V AC
113 V DC
- Weight
200 g
- Cable length
1.00 m
- Width
39.1 mm
- Height
56.2 mm
- Length
75.5 mm
- Type
GEM60I09-P1J
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2113612 MEAN WELL GEM60I09-P1J Mains PSU (fixed voltage) 9 V DC 5.5 A 49.5 W
User & Safety Instructions
User & Safety Instructions 2113612 MEAN WELL GEM60I09-P1J Mains PSU (fixed voltage) 9 V DC 5.5 A 49.5 W
Information
Information 2113612 MEAN WELL GEM60I09-P1J Mains PSU (fixed voltage) 9 V DC 5.5 A 49.5 W
Warranty Terms
Warranty Terms 2113612 MEAN WELL GEM60I09-P1J Mains PSU (fixed voltage) 9 V DC 5.5 A 49.5 W
Description
Features
- Universal input
- Overload protection by circuit breaker (Hiccup), auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- Energy efficiency level V
Hints
Input plug must be ordered separately.
Best.Nr.:
001439281 AC-PLUG-AU 2
001439282 AC-PLUG-EU2
001439283 AC-PLUG-MIX 2
001439284 AC-PLUG-UK 2
001439285 AC-PLUG-US2
