Buy MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W

MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W-0

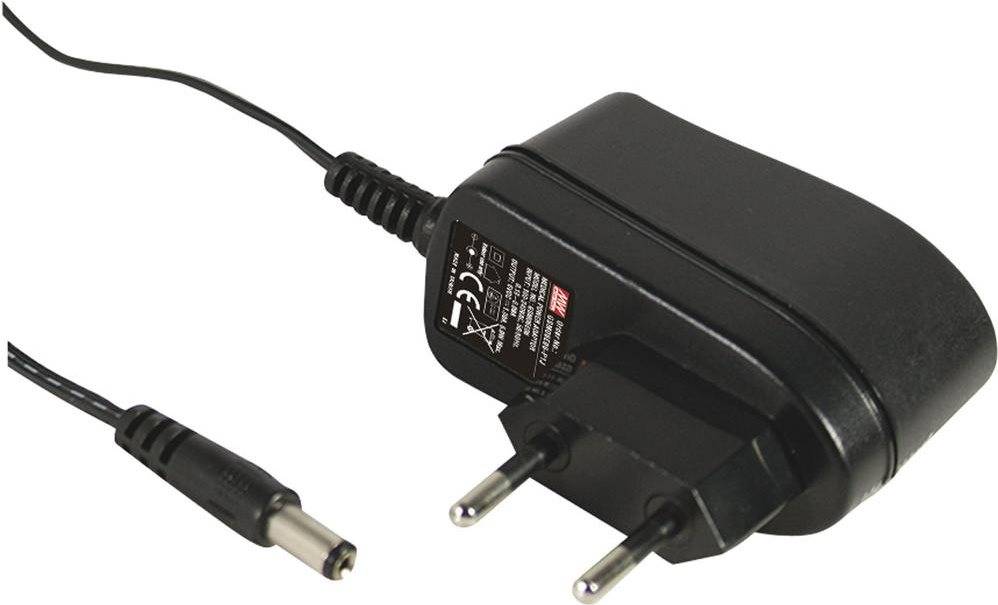

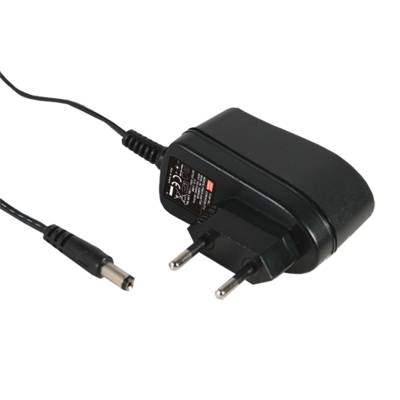

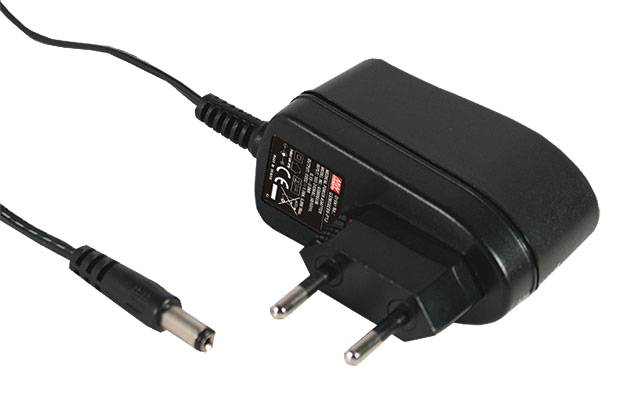

Black power supply with European plug and connection cable. Suitable for electronic devices.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

medical

Product type: Mains PSU (fixed voltage)

Used at: Mains socket

Type: Synchronised

Max. output current: 1000 mA

Output voltage: 6 V DC

Output current (max.) - rounded: 1 A

Output: 5.5/2.1 coaxial connector

Input voltage: 115 V AC
230 V AC

: 6 W

Dim: (L x W x H) 32 x 66 x 42.5 mm

Connection: Cable + connector

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

Weight: 100 g

Width: 66 mm

Height: 42.5 mm

Length: 32 mm

Type: GSM06E06-P1J

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1294241 MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W

User & Safety Instructions

User & Safety Instructions 1294241 MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W

Information

Information 1294241 MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W

Warranty Terms

Warranty Terms 1294241 MEAN WELL GSM06E06-P1J Mains PSU (fixed voltage) 6 V DC 1000 mA 6 W

Description

Plug-in switching power supply with europlug · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Insulation Class II · Low no load power consumption · For medical usage, compliance with EN60601-1 (2x MOPP Level)
