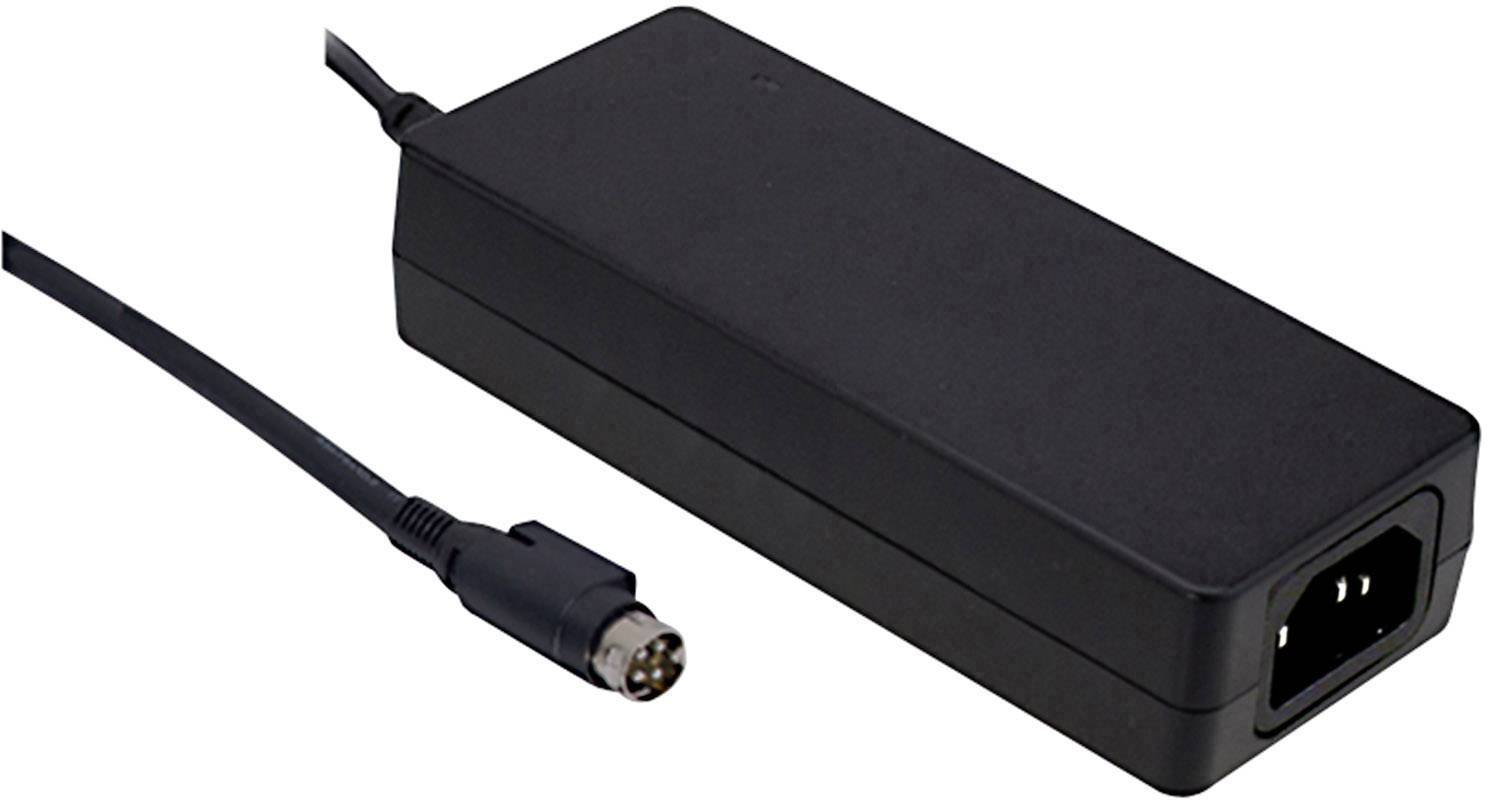

MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
- Bench power supply unit
- Universal input
- Protected against short circuit, overload, over voltage
- Insulation class I
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level VI (DOE)
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Indoors
Portable
Fixed
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Output
4-pin
- Output voltage
24 V DC
- Input voltage
110 V AC
230 V AC
- No. of outputs
1 x
- Output current (high)
5 A
- Inputs
1
- EuP Status
Level VI
- Weight
600 g
120 W
- Type
Pulsed
- Width
67 mm
- Height
35 mm
- Length
167 mm
- Type
GSM120A24-R7B
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838031 MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
User & Safety Instructions
User & Safety Instructions 1838031 MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
Information
Information 1838031 MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
Warranty Terms
Warranty Terms 1838031 MEAN WELL GSM120A24-R7B Bench PSU (fixed voltage) 24 V DC 5 A 120 W
Description
In order to meet the demand for medical power supplies, has mean corrugated the desktop power supplies of the GSM family with the series GSM 120 A expanded.
The desktop power supplies are in accordance with the Directive IEC 60601-1 of 3. Version and meet the requirements of 2x MOP.
They have a leakage current of less than 100 μA, a degree of efficiency of up to 94.5% and an idle capacity of less than 0.15 W. Suitable applications include mobile clinical jobs and portable hemodialysis devices.
This text is machine translated.
The desktop power supplies are in accordance with the Directive IEC 60601-1 of 3. Version and meet the requirements of 2x MOP.
They have a leakage current of less than 100 μA, a degree of efficiency of up to 94.5% and an idle capacity of less than 0.15 W. Suitable applications include mobile clinical jobs and portable hemodialysis devices.
This text is machine translated.
Features
- Bench power supply unit
- Universal input
- Protected against short circuit, overload, over voltage
- Insulation class I
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level VI (DOE)
