MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Max. output current
7 A
- Output current (max.) - rounded
7 A
- Output
Mini DIN plug (4-pin)
- Output voltage
15 V DC
- Input voltage
80 V AC
264 V AC
- No. of outputs
1 x
- Inputs
1
- Weight
600 g
105 W
- Type
Synchronised
- Width
67 mm
- Height
35 mm
- Length
167 mm
- Type
GSM120B15-R7B
- Input voltage (max.)
264 V AC
- Min. input voltage
80 V AC
- Max. power
105 W
- No. of inputs
1 x
Documents & Downloads
Datasheet
Datasheet 1439294 MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
User & Safety Instructions
User & Safety Instructions 1439294 MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
Information
Information 1439294 MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
Information 1439294 MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
Warranty Terms
Warranty Terms 1439294 MEAN WELL GSM120B15-R7B Bench PSU (fixed voltage) 15 V DC 7 A 105 W
Description

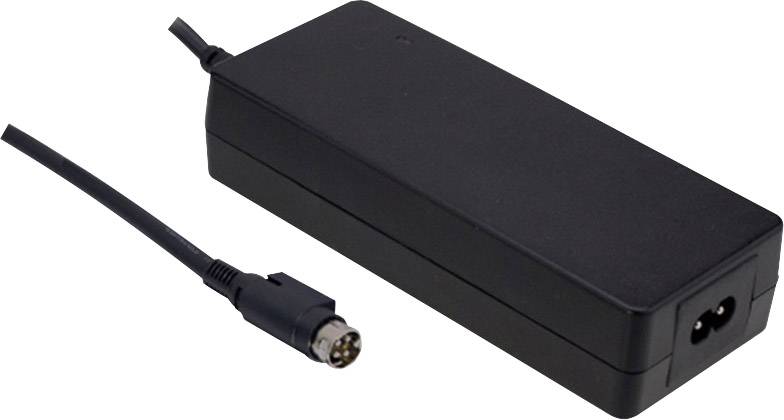

Desktop - switching power supply with universal input and Insulation Class II. This power supply is suitable for applications in medical (EN60601-1 (2x MOPP Level)).
Features
- Desktop switching power supply
- universal input
- protections: short circuit/over load/over voltage
- insulation class II
- For medical usage, compliance with EN60601-1 (2x MOPP Level)
