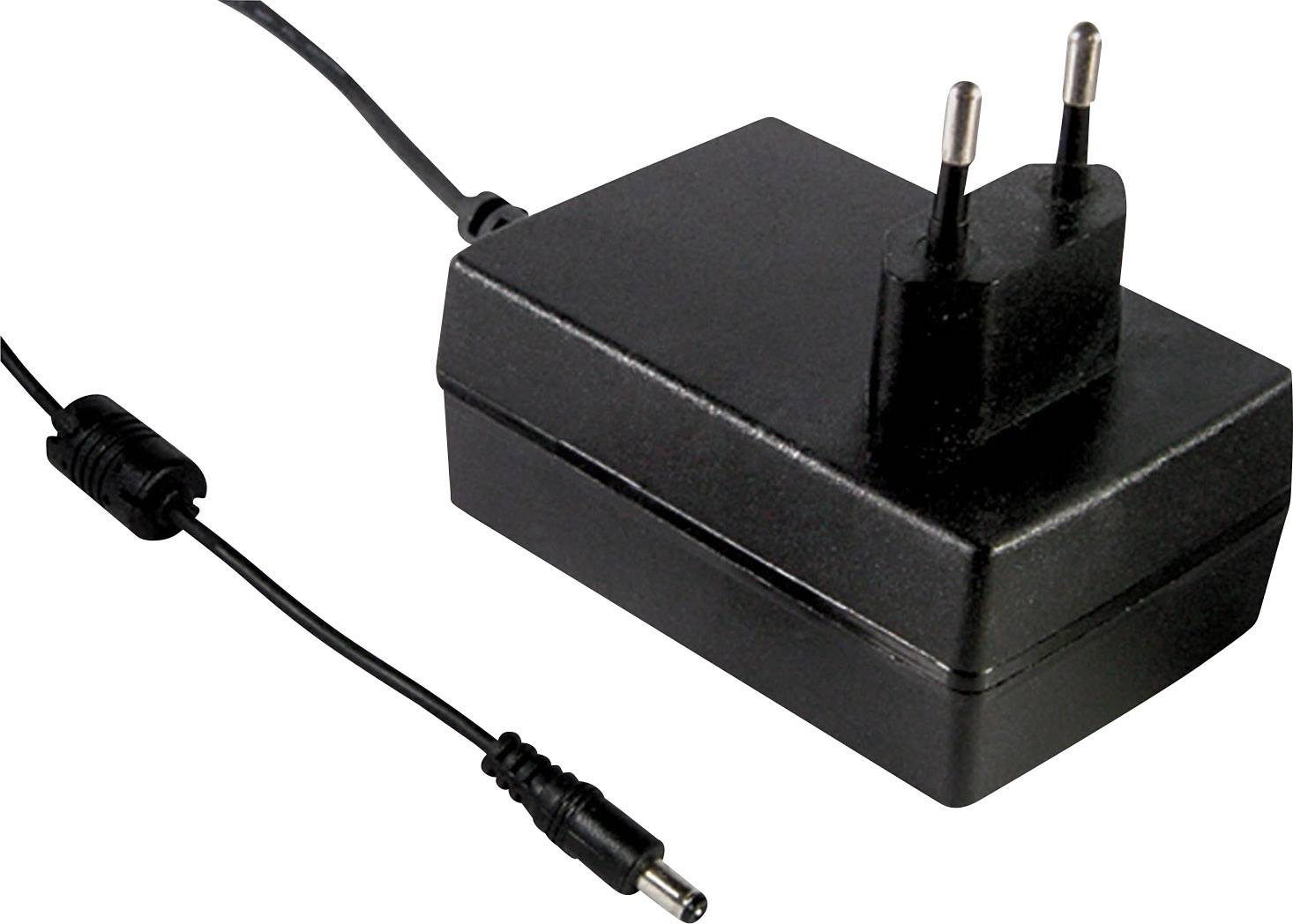

MEAN WELL GSM18E09-P1J Mains PSU (fixed voltage) 9 V DC 2 A 18 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL power supply series GSM Medical Single Output Power: 18 W18E
- Plug power supply with Euro plug
- Universal input
- Overload protection by circuit breaker (Hiccup), auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- For applications in medical technology EN 60601-1 (2x MOP Level)
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Indoors
Portable
Fixed
- Type
Pulsed
- Max. output current
2 A
- Output voltage
9 V DC
- Output current (max.) - rounded
2 A
- Output
5.5/2.1 coaxial connector
- Input voltage
110 V AC
230 V AC
18 W
- Dim
(L x W x H) 79 x 54 x 33 mm
- Connection
Cable + connector
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
80 V AC
113 V DC
- Weight
200 g
- Cable length
1.20 m
- Width
54 mm
- Height
33 mm
- Length
79 mm
- Type
GSM18E09-P1J
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1837961 MEAN WELL GSM18E09-P1J Mains PSU (fixed voltage) 9 V DC 2 A 18 W
User & Safety Instructions
User & Safety Instructions 1837961 MEAN WELL GSM18E09-P1J Mains PSU (fixed voltage) 9 V DC 2 A 18 W
Warranty Terms
Warranty Terms 1837961 MEAN WELL GSM18E09-P1J Mains PSU (fixed voltage) 9 V DC 2 A 18 W
Description
With the series GSM 18 E extends the range of its medical mean corrugated power supply in the lower performance range.
The power supplies of the series GSM_E have a 2-pin Euro plug (without FG) and have a input voltage range of 80 V AC to 264 V AC. With output voltages of 5 V DC to 48V DC power supplies meet the requirements for many different types of small medical devices. The circuit design corresponds to the international medical standards (2 x MOP). They have a very low leakage current of less than 50µA and are approved for devices with direct patient contact.
Thus, the mean corrugated power supplies your application area in the household as well as in portable medical devices.
This text is machine translated.
The power supplies of the series GSM_E have a 2-pin Euro plug (without FG) and have a input voltage range of 80 V AC to 264 V AC. With output voltages of 5 V DC to 48V DC power supplies meet the requirements for many different types of small medical devices. The circuit design corresponds to the international medical standards (2 x MOP). They have a very low leakage current of less than 50µA and are approved for devices with direct patient contact.
Thus, the mean corrugated power supplies your application area in the household as well as in portable medical devices.
This text is machine translated.
Features
- Plug power supply with Euro plug
- Universal input
- Overload protection by circuit breaker (Hiccup), auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level V
