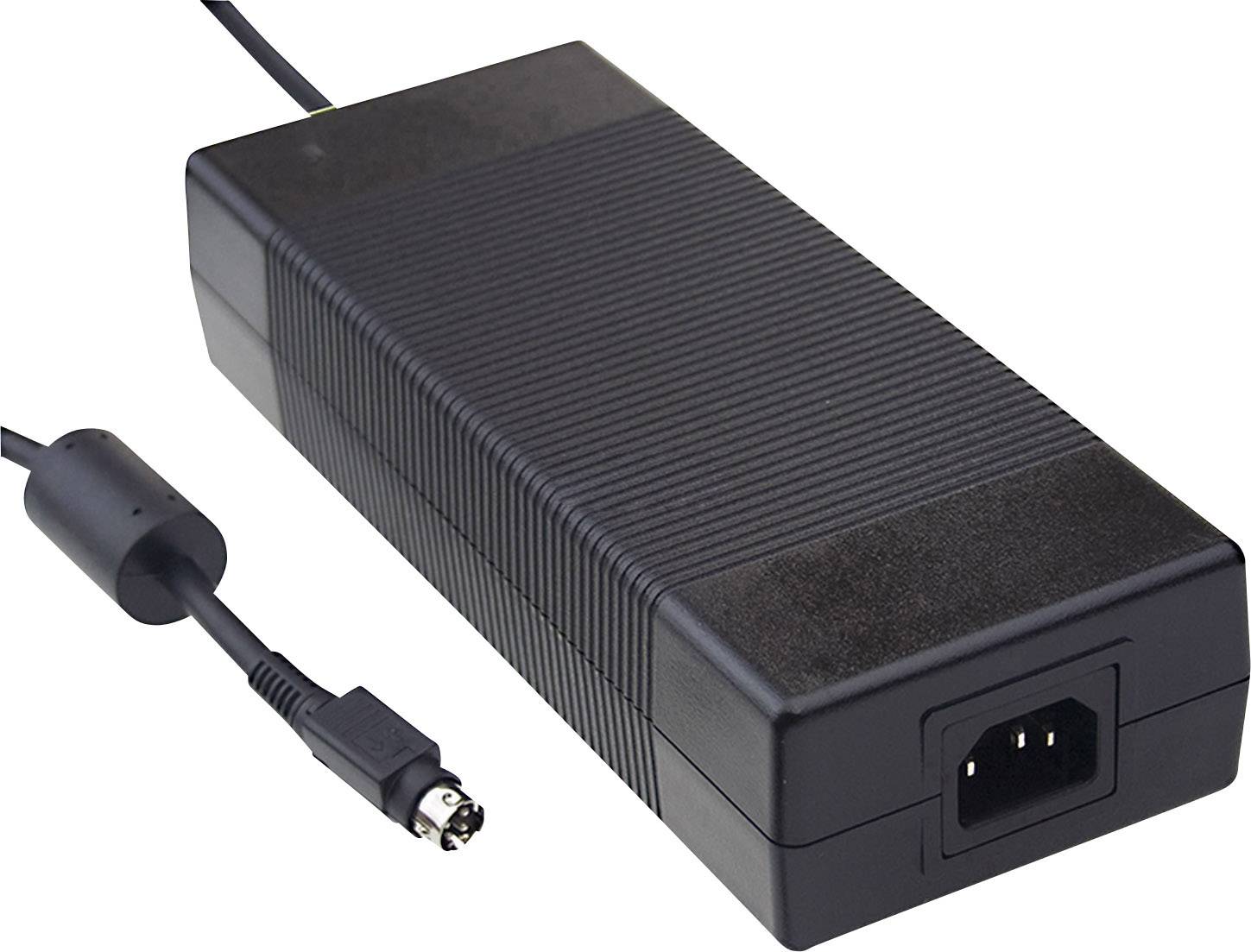

MEAN WELL GSM220A24-R7B Bench PSU (fixed voltage) 24 V DC 9.2 A 221 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MW MEANWELL bench power supply series GSM220A Medical Single Output power: 220W
- Bench power supply unit
- Universal input
- Protected against short circuit, overload, over voltage
- Insulation class I
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level VI (DOE)
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Used at
Indoors
Portable
Fixed
- Max. output current
9.2 A
- Output current (max.) - rounded
9.2 A
- Output
4-pin
- Output voltage
24 V DC
- Input voltage
110 V AC
230 V AC
- No. of outputs
1 x
- Connections
Cable with connector
- Output current (high)
9.2 A
- Inputs
1
- EuP Status
Level VI
- Weight
1100 g
221 W
- Type
Pulsed
- Width
85 mm
- Height
46 mm
- Length
210 mm
- Type
GSM220A24-R7B
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838163 MEAN WELL GSM220A24-R7B Bench PSU (fixed voltage) 24 V DC 9.2 A 221 W
User & Safety Instructions
User & Safety Instructions 1838163 MEAN WELL GSM220A24-R7B Bench PSU (fixed voltage) 24 V DC 9.2 A 221 W
Information
Information 1838163 MEAN WELL GSM220A24-R7B Bench PSU (fixed voltage) 24 V DC 9.2 A 221 W
Warranty Terms
Warranty Terms 1838163 MEAN WELL GSM220A24-R7B Bench PSU (fixed voltage) 24 V DC 9.2 A 221 W
Description
To meet the demand for medical power supplies, Meanwell has extended the GSM family of desktop power supplies to include the GSM220A series.
The desktop power supplies comply with IEC60601-1 of 3. Version and they meet the requirements of 2x MOPP.
They have a leakage current of less than 100μA, an efficiency of up to 94.5% and a no-load power of less than 0.15W. Suitable applications include mobile clinical workplaces and portable hemodialysis machines.
This text is machine translated.
The desktop power supplies comply with IEC60601-1 of 3. Version and they meet the requirements of 2x MOPP.
They have a leakage current of less than 100μA, an efficiency of up to 94.5% and a no-load power of less than 0.15W. Suitable applications include mobile clinical workplaces and portable hemodialysis machines.
This text is machine translated.
Features
- Bench power supply unit
- Universal input
- Protected against short circuit, overload, over voltage
- Insulation class I
- For applications in medical technology EN 60601-1 (2x MOP Level)
- Energy efficiency level VI (DOE)
