Buy MEAN WELL GSM60B12-P1J Bench PSU (fixed voltage) 12 V DC 5 A 60 W

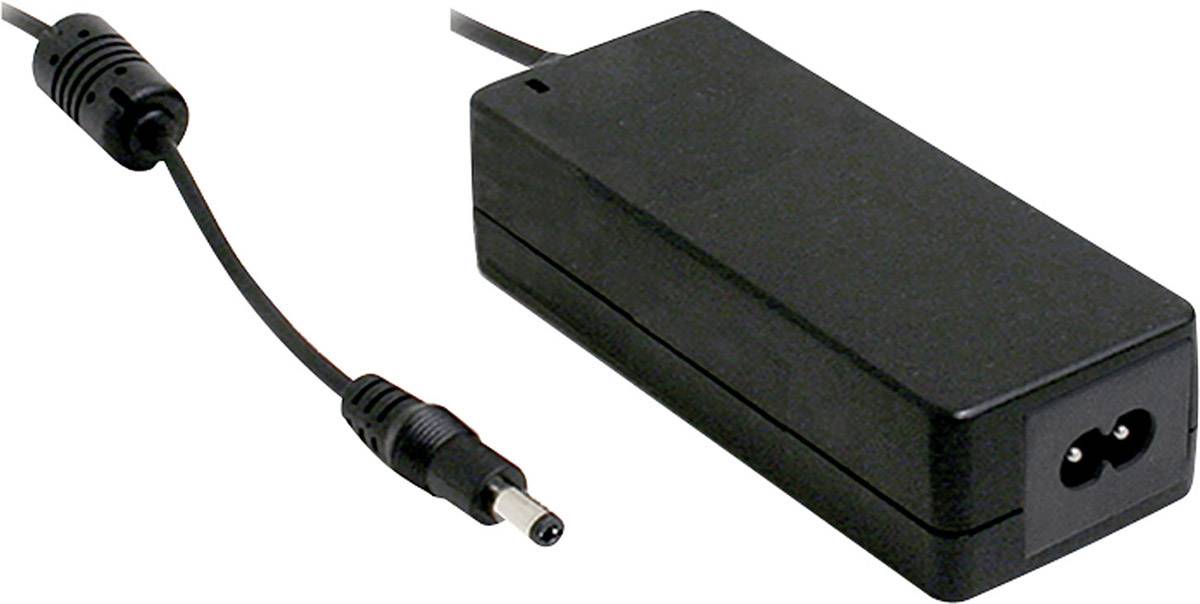

A black laptop power adapter with two cables: a power cable with a plug and an adapter cable with a round connector.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEAN WELL GSM60B12-P1J Bench PSU (fixed voltage) 12 V DC 5 A 60 W

Bench power supply unit
Universal input
Protected against short circuit, overload, over voltage
Insulation category II
For applications in medical technology EN 60601-1 (2x MOP Level)
Energy efficiency level VI (DOE)

Technical specifications

Product type: Bench PSU (fixed voltage)

Used at: Indoors
Portable
Fixed

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Output: 5.5/2.1 coaxial connector

Output voltage: 12 V DC

Input voltage: 110 V AC
230 V AC

No. of outputs: 1 x

Output current (high): 5 A

Inputs: 1

EuP Status: Level VI

Weight: 320 g

: 60 W

Type: Pulsed

Width: 50 mm

Height: 31.5 mm

Length: 125 mm

Type: GSM60B12-P1J

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1838156 MEAN WELL GSM60B12-P1J Bench PSU (fixed voltage) 12 V DC 5 A 60 W

User & Safety Instructions

User & Safety Instructions 1838156 MEAN WELL GSM60B12-P1J Bench PSU (fixed voltage) 12 V DC 5 A 60 W

Warranty Terms

Warranty Terms 1838156 MEAN WELL GSM60B12-P1J Bench PSU (fixed voltage) 12 V DC 5 A 60 W

Description

In order to meet the demand for medical power supplies, has mean corrugated the desktop power supplies of the GSM family with the series GSM 60b.
The desktop power supplies are in accordance with the Directive IEC 60601-1 of 3. Version and meet the requirements of 2x MOP.
They have a leakage current of less than 50 μA, a degree of efficiency of up to 91.5% and an idle capacity of less than resistor 0.1 W. Suitable applications include mobile clinical jobs and portable hemodialysis devices.

This text is machine translated.
