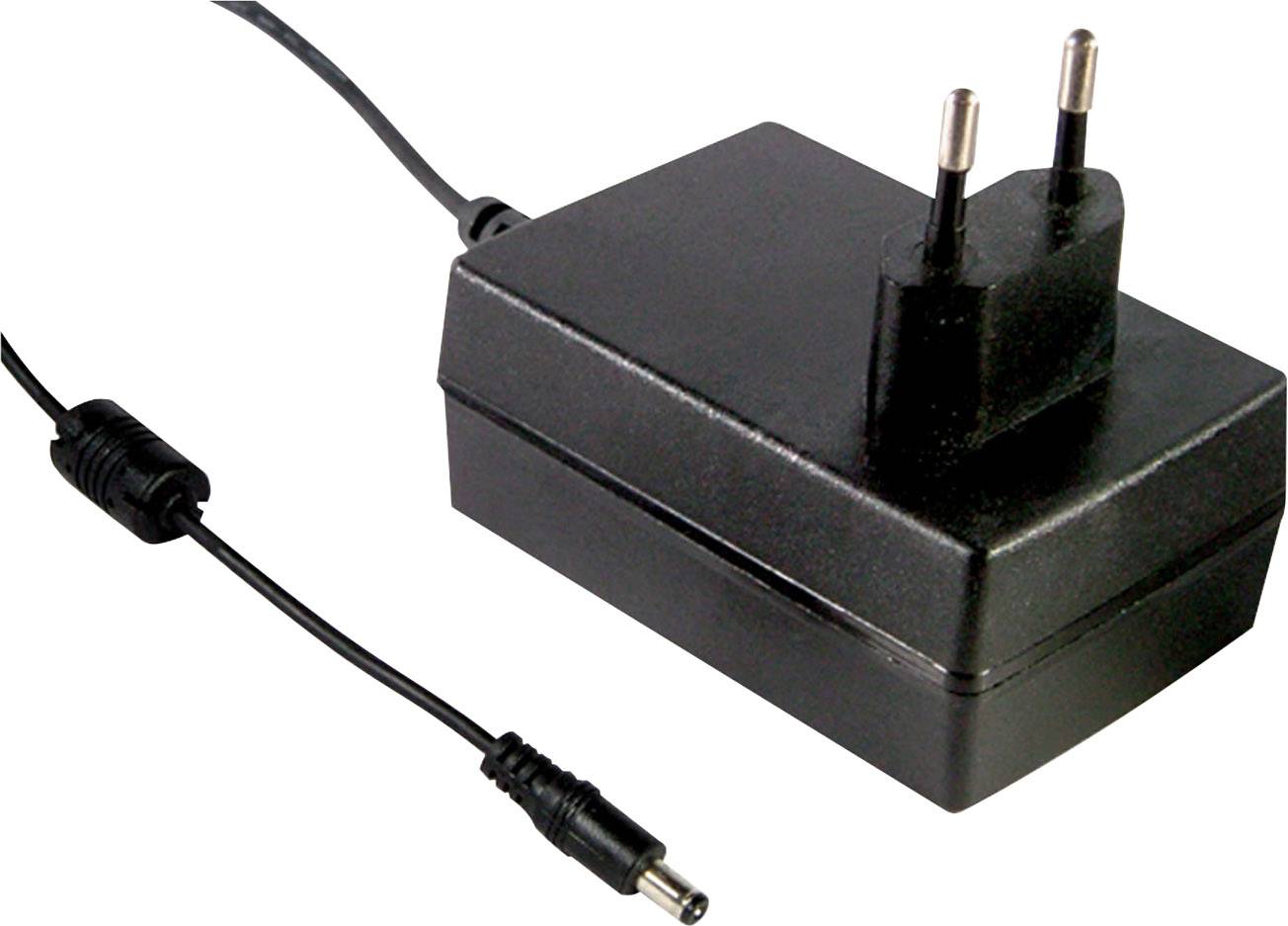

MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Type
Synchronised
- Max. output current
2000 mA
- Output voltage
7.5 V DC
- Output current (max.) - rounded
2 A
- Output
5.5/2.1 coaxial connector
- Input voltage
115 V AC
230 V AC
15 W
- Dim
(L x W x H) 105 x 75 x 60 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Weight
209 g
- Width
75 mm
- Height
60 mm
- Length
105 mm
- Type
GST18E07-P1J
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1439181 MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
User & Safety Instructions
User & Safety Instructions 1439181 MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
Information
Information 1439181 MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
Information 1439181 MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
Warranty Terms
Warranty Terms 1439181 MEAN WELL GST18E07-P1J Mains PSU (fixed voltage) 7.5 V DC 2000 mA 15 W
Description
Universal plug-in switching power supply with europlug, complies with energy efficiency level VI (DOE). It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.
Features
- Plug-in switching power supply with europlug
- universal input
- overload protection, pulsing hiccup shutdown, auto recovery
- protections: short circuit/over load/over voltage
- insulation class II
- low no load power consumption
- energy efficiency level VI (DOE)
