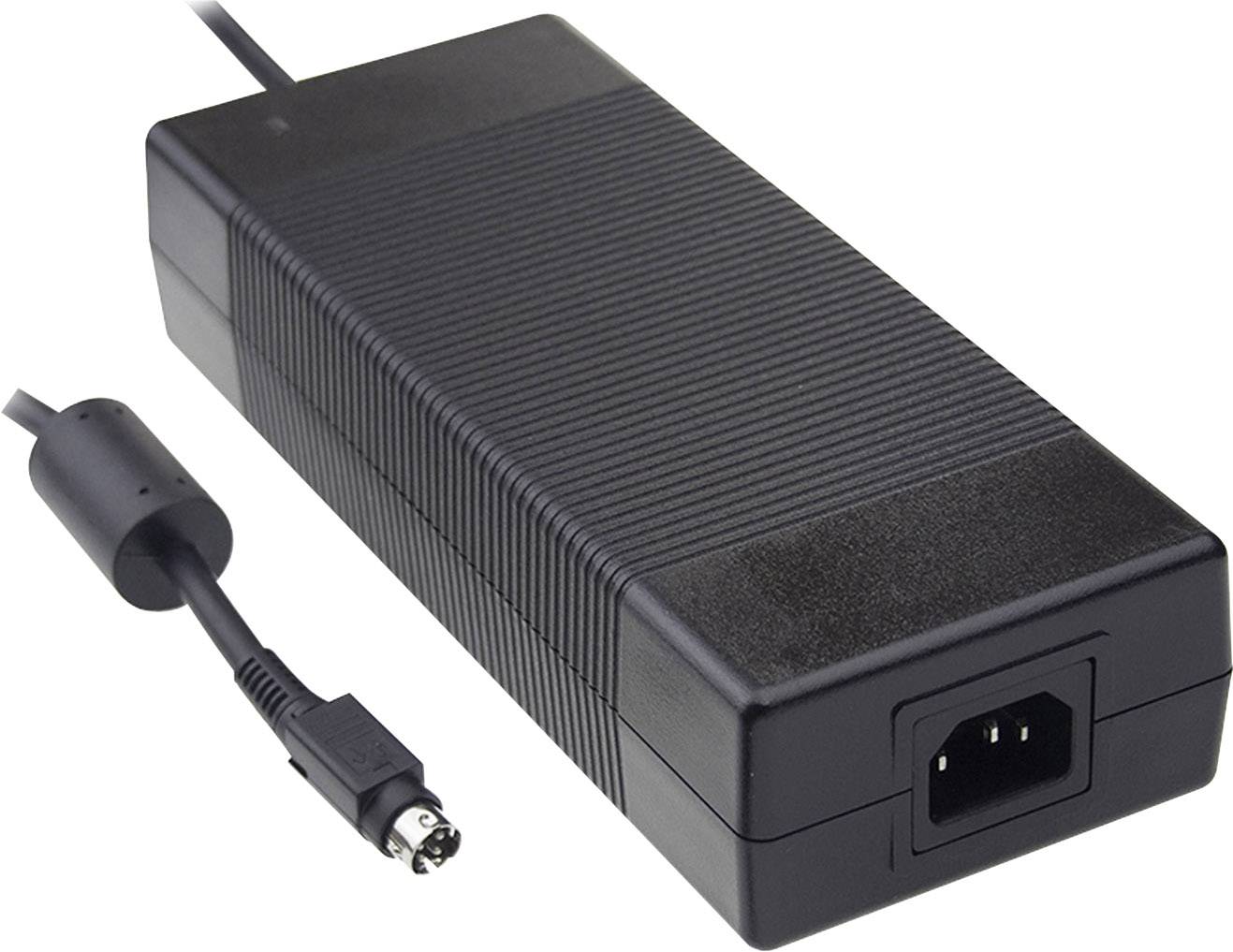

MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Bench PSU (fixed voltage)
- Max. output current
11 A
- Output current (max.) - rounded
11 A
- Output
Mini DIN plug (4-pin)
- Output voltage
20 V DC
- Input voltage
85 V AC
264 V AC
- No. of outputs
1 x
- Inputs
1
- Weight
1100 g
220 W
- Type
Synchronised
- Width
110 mm
- Height
60 mm
- Length
240 mm
- Type
GST220A20-R7B
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Max. power
220 W
- No. of inputs
1 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1439255 MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
User & Safety Instructions
User & Safety Instructions 1439255 MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
Information
Information 1439255 MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
Information 1439255 MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
Warranty Terms
Warranty Terms 1439255 MEAN WELL GST220A20-R7B Bench PSU (fixed voltage) 20 V DC 11 A 220 W
Description
Desktop - switching power supply, corresponds to the energy saving directive ErP. It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.
Features
- Desktop switching power supply
- universal input
- protections: short circuit/over load/over voltage
- insulation class I
- very low no load power consumption
Hints
Connection cable not included in delivery. Please order separately.
