MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
14-day return policy included
Highlights & Details
MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
- Universal input
- Protected against short-circuit, overload, overvoltage, overheating
- Insulation class I.
- Very low idle power
- Energy efficiency level VI (DOE)
- Safety standards: EN62368-1
- EMC standards: EN55032 class B and others
- This text is machine translated.
Technical specifications
- The mains input cable must be ordered separately
- Product type
Bench PSU (fixed voltage)
- Used at
Indoors
Mains socket
Portable
Fixed
- Max. output current
6.1 A
- Output current (max.) - rounded
6.1 A
- Output
Mini DIN plug (4-pin)
- Output voltage
36 V DC
- Input voltage
230 V AC
115 V AC
- No. of outputs
1 x
- Output current (high)
6,1 A
- EuP Status
Level VI
- Weight
1100 g
219.6 W
- Type
Pulsed
- Width
85 mm
- Height
46 mm
- Length
210 mm
- Type
GST220A36-R7B
- UKCA
yes
Documents & Downloads

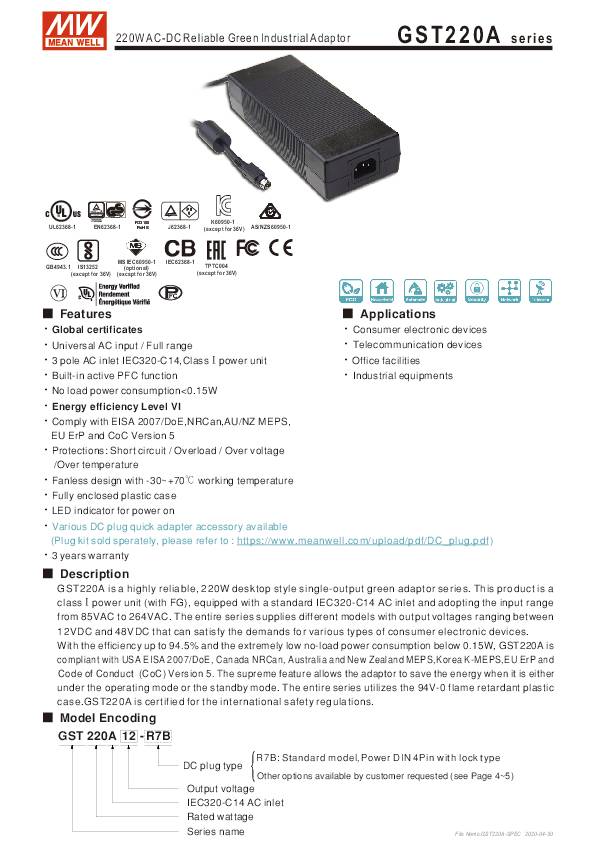

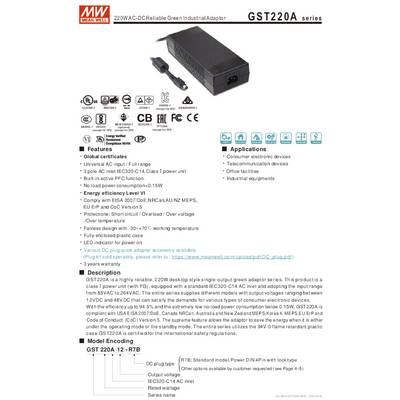

Datasheet
Datasheet 2246333 MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
User & Safety Instructions
User & Safety Instructions 2246333 MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
Information
Information 2246333 MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
Warranty Terms
Warranty Terms 2246333 MEAN WELL GST220A36-R7B Bench PSU (fixed voltage) 36 V DC 6.1 A 219.6 W
Description
Features
- Universal input
- Protected against short circuit, overload, overvoltage, overheating
- Insulation class I
- Very low idle power
- Energy efficiency level VI (DOE)
- Safety standards: EN62368-1
- EMC standards: EN55032 class B and others
