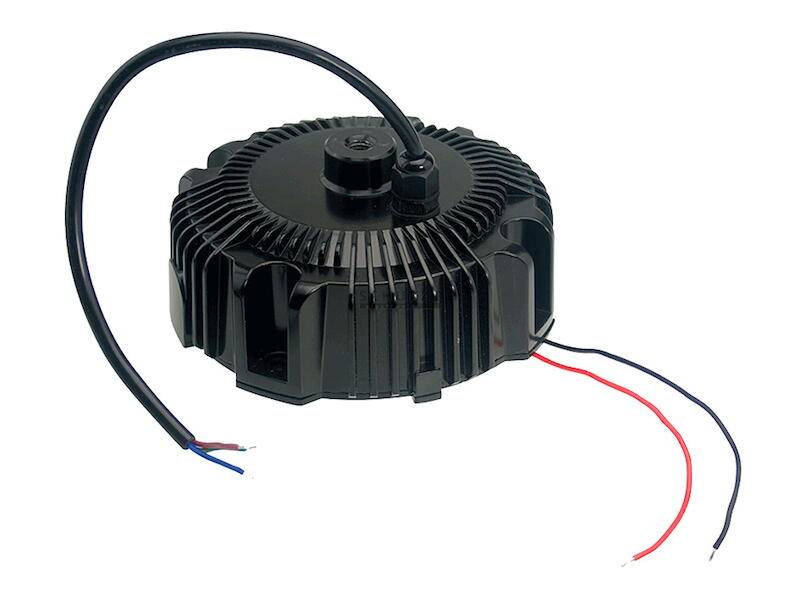

Image similar

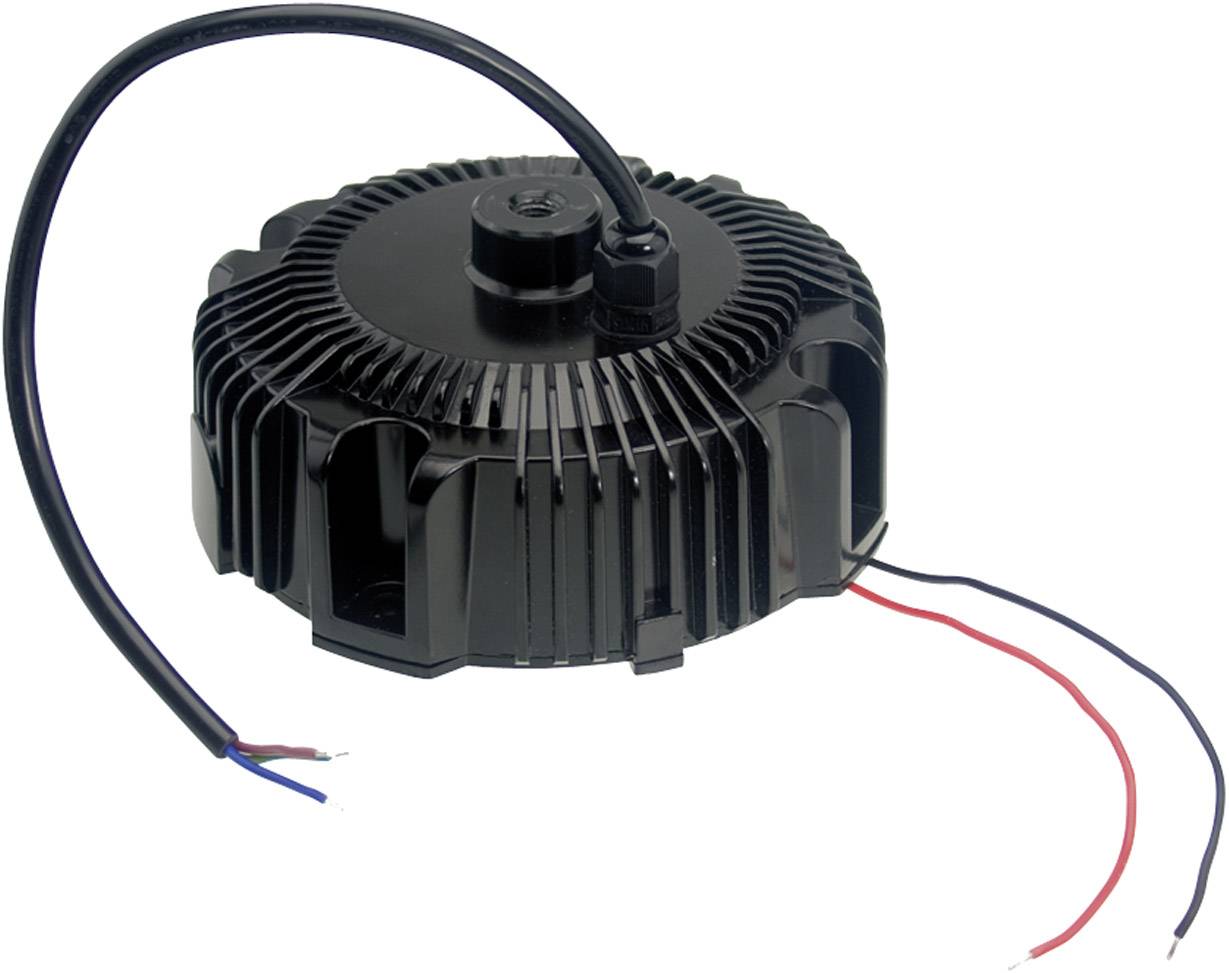

Image similar

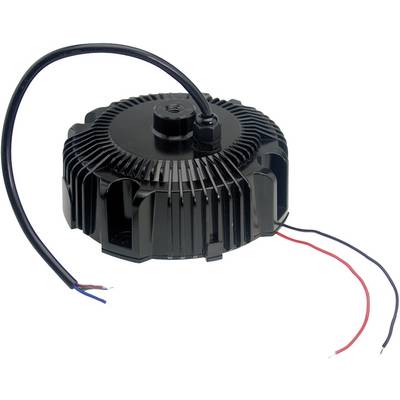

MEAN WELL HBG-100-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 24 - 48 V DC dimmable, PFC
EAN:
Part number:
Item no:
Datasheet (PDF)
18 Piece(s)
Sales and shipping:
Number
Total (€ 47.05 / piece)
€
Highlights & Details
LED-switching power supply
- Constant voltage, Constant current
- 24 - 48 V DC
- 2 A
Technical specifications
- Protection class: IP65
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 66.5 x 113 x 113 mm
- Output voltage (max.)
48 V DC
- Output voltage (min.)
24 V DC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Operating voltage
115 V AC
230 V AC
- Protection class
I
- LED driver features
dimmable
PFC circuit
Surge protection
Approved for use on furniture
IP65
- Connection
Open end cable
- Max. power
96 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
1.18 kg
- Power range
96 W (max)
- Type
Synchronised
- Width
113 mm
- Height
113 mm
- Length
66.5 mm
Documents & Downloads
Datasheet
Datasheet 1293599 MEAN WELL HBG-100-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 24 - 48 V DC dimmable, PFC
User & Safety Instructions
User & Safety Instructions 1293599 MEAN WELL HBG-100-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 24 - 48 V DC dimmable, PFC
Information
Information 1293599 MEAN WELL HBG-100-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 24 - 48 V DC dimmable, PFC
Warranty Terms
Warranty Terms 1293599 MEAN WELL HBG-100-48A LED driver, LED transformer Constant voltage, Constant current 96 W 2 A 24 - 48 V DC dimmable, PFC
Description
Circular shape, fully potted aluminium enclosure, IP65 · Universal input · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Suitable for LED lighting and moving sign applications · For high bay/low bay lighting, stage light · Adjustable output current with internal potentiometer
Features
- Round shape, shed aluminum housing
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- For LED lighting applications
- For LED-halls and industrial lamps, stage lighting
- Adjustable current limit via internal potentiometer.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
