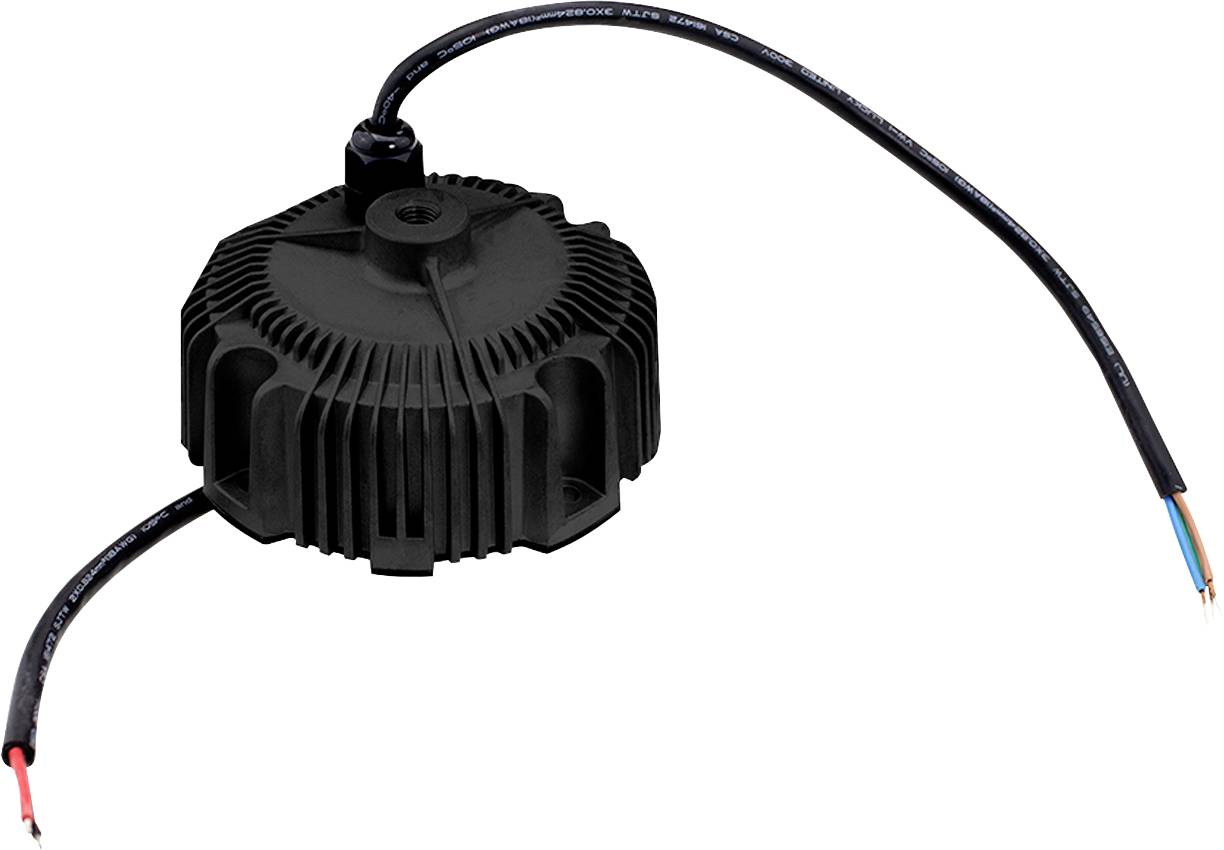

MEAN WELL HBG-100-60 LED driver Constant voltage, Constant current 96 W 1.6 A 60 V DC Outdoor, PFC circuit, not dimmable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HBG-100-60
- Constant voltage, Constant current
- 60 V DC
- 1.6 A
Technical specifications
- Mixed mode output (voltage stabilized/CV or current stabilized/CC)
- Depending on the connected LED illuminant (constant current or constant voltage), the fits
- DC output of the LED power supply, within the framework of the specified technical parameters of the data sheet, the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 113 x 113 x 66.5 mm
- Factory colour
Black (anodised)
- Output voltage (max.)
60 V DC
- Output voltage (min.)
60 V DC
- Test mark
SELV, ENEC, CB
- Max. output current
1.6 A
- Output current (max.) - rounded
1.6 A
- Operating voltage
230 V AC
115 V AC
- LED driver features
Outdoor
PFC circuit
not dimmable
Overvoltage
Surge protection
IP67
- Connection
Open end cable
- Max. power
96 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1.6 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
1180 g
- Power (min.)
96 W
- Power range
96 up to 96 W
- Type
Pulsed
- Width
113 mm
- Height
66.5 mm
- Length
113 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237696 MEAN WELL HBG-100-60 LED driver Constant voltage, Constant current 96 W 1.6 A 60 V DC Outdoor, PFC circuit, not dimmable
User & Safety Instructions
User & Safety Instructions 2237696 MEAN WELL HBG-100-60 LED driver Constant voltage, Constant current 96 W 1.6 A 60 V DC Outdoor, PFC circuit, not dimmable
Warranty Terms
Warranty Terms 2237696 MEAN WELL HBG-100-60 LED driver Constant voltage, Constant current 96 W 1.6 A 60 V DC Outdoor, PFC circuit, not dimmable
Description
Features
- Constant current and constant voltage
- Current preset
- Independant operating device
- Round design, cast metal housing
- Wide-range input
- Overload protection by current limitation, auto recovery
- Protected against short-circuit, overload, overvoltage, overtemperature
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
