MEAN WELL HBG-160-48B LED driver Constant voltage, Constant current 158.4 W 3.3 A 48 V DC dimmable, 3-in-1 dimmer, Suita
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 60.50 / piece)
€ 60.50
plus VAT.
Only 9 Piece(s) available
Highlights & Details
LED power supply HBG-160-48B
- Constant voltage, Constant current
- 48 V DC
- 3.3 A
Technical specifications
- Mixed-mode output (voltage-stabilised/CV or current stabilised/CC)
- Depending on the connected LED light bulbs (constant current or constant voltage) fits the
- DC-output of the LED power supply unit, in the framework of the specified technical parameters of the data sheet of the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Operating current
3.3 A
- Dim
(L x W x H) 132 x 132 x 66.5 mm
- Factory colour
Black
- Output voltage (max.)
48 V DC
- Test mark
CB, SELV, UL, ENEC
- Max. output current
3.3 A
- Output current (max.) - rounded
3.3 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
dimmable
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
PFC circuit
Outdoor
Surge protection
Overvoltage
IP67
- Connection
Open end cable
- Max. power
158.4 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Inputs
1
- Weight
1530 g
- Power range
158.4 W (max)
- Type
Pulsed
- Width
132 mm
- Height
66.5 mm
- Length
132 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2113623 MEAN WELL HBG-160-48B LED driver Constant voltage, Constant current 158.4 W 3.3 A 48 V DC dimmable, 3-in-1 dimmer, Suita
User & Safety Instructions
User & Safety Instructions 2113623 MEAN WELL HBG-160-48B LED driver Constant voltage, Constant current 158.4 W 3.3 A 48 V DC dimmable, 3-in-1 dimmer, Suita
Warranty Terms
Warranty Terms 2113623 MEAN WELL HBG-160-48B LED driver Constant voltage, Constant current 158.4 W 3.3 A 48 V DC dimmable, 3-in-1 dimmer, Suita
Description

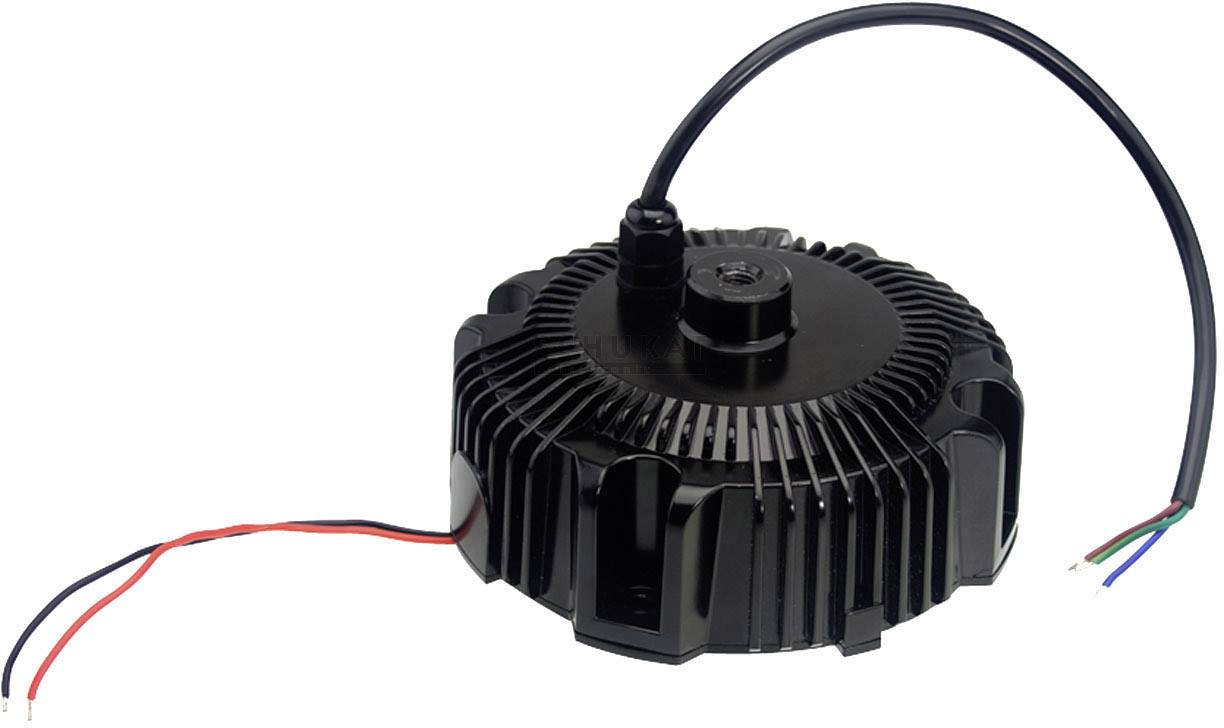

LED power supply in Metal housing. With Mixed-mode output (constant voltage up to a maximum current, then constant current (C.V. + C.C.)).
This text is machine translated.
This text is machine translated.
Features
- IP67, dimmable design, constant voltage and constant current adjustable 0...10V DC, PWM, potentiometer
- Independent operating device
- Round shape, shed metal housing
- Wide-range input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
