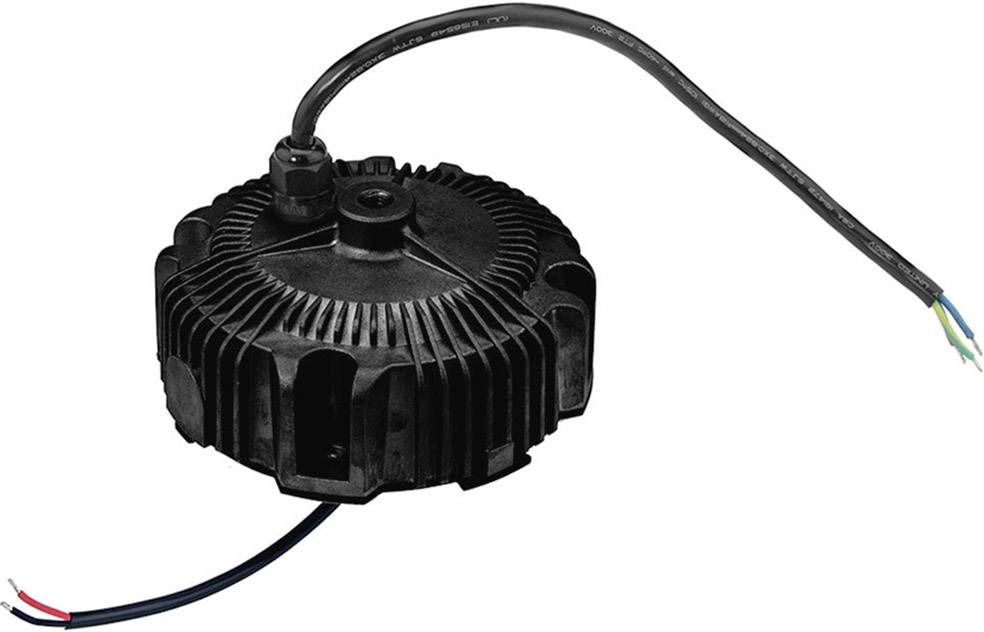

MEAN WELL HBG-200-48 LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC not dimmable, PFC circuit, Surg
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Only 4 Piece(s) available
Highlights & Details
HBG-200-48
- Constant voltage, Constant current
- 48 V DC
- 4.1 A
Technical specifications
- Mixed-mode output (voltage-stabilised/CV or current stabilised/CC)
- Depending on the connected LED light bulbs (constant current or constant voltage) fits the
- DC-output of the LED power supply unit, in the framework of the specified technical parameters of the data sheet of the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 132 x 132 x 66.5 mm
- Factory colour
Black
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- Test mark
CB, SELV, UL, ENEC
- Max. output current
4.1 A
- Output current (max.) - rounded
4.1 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
not dimmable
PFC circuit
Surge protection
Overvoltage
Outdoor
IP67
- Connection
Open end cable
- Max. power
196.8 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
4.1 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Inputs
1
- Weight
1530 g
- Power (min.)
196.8 W
- Power range
196.8 up to 196.8 W
- Type
Pulsed
- Width
132 mm
- Height
66.5 mm
- Length
132 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2113613 MEAN WELL HBG-200-48 LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC not dimmable, PFC circuit, Surg
User & Safety Instructions
User & Safety Instructions 2113613 MEAN WELL HBG-200-48 LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC not dimmable, PFC circuit, Surg
Warranty Terms
Warranty Terms 2113613 MEAN WELL HBG-200-48 LED driver Constant voltage, Constant current 196.8 W 4.1 A 48 V DC not dimmable, PFC circuit, Surg
Description
Features
- IP67
- Constant voltage and constant current
- Round shape, shed aluminum housing
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
