Buy MEAN WELL HDR-100-24N Rail mounted PSU (DIN) 24 V DC 4.2 A 100.8 W No. of outputs:1 x Content 1 pc(s)

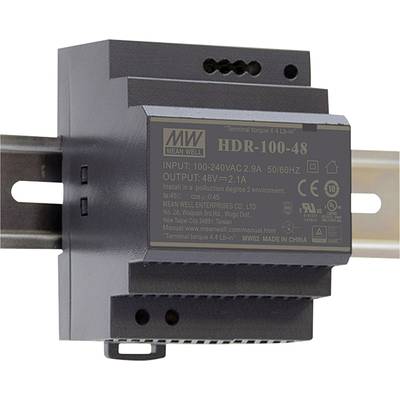

A black Mean Well switched power supply model HDR-100-48 on a DIN rail. Input: 100–240V, Output: 48V, 2.1A.

Image similar

Datasheet (PDF)

Fast track dispatch on Wed, 8 Jul

336 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.88 / piece)

€ 46.21

-42 %

€ 26.88

plus VAT.

Report legal concerns

Highlights & Details

MEANWELL power supply series HDR-100-24 DIN-Rail Mounting Single Output 1-phase power: 100 W

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Protected against short circuit, overload, over voltage
Low idle power
LED display for power-on
Insulation category II

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Type: Pulsed

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC
120 V DC

Output voltage: 24 V DC

Input voltage: 47 - 63 Hz

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 4.2 A

Output current (max.) - rounded: 4.2 A

: 100.8 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 54.5 x 70 x 90 mm

Weight: 270 g

Output voltage (max.): 29 V DC

Output voltage (min.): 21.6 V DC

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Manufacturer part #: HDR-100-24N

Content: 1 pc(s)

MTBF: 856500 h

PSU features: Adjustable voltage output

Width: 70 mm

Height: 90 mm

Length: 54.5 mm

Type: HDR-100-24N

Efficiency: 90 %

Documents & Downloads

Datasheet

Datasheet 2176586 MEAN WELL HDR-100-24N Rail mounted PSU (DIN) 24 V DC 4.2 A 100.8 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2176586 MEAN WELL HDR-100-24N Rail mounted PSU (DIN) 24 V DC 4.2 A 100.8 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2176586 MEAN WELL HDR-100-24N Rail mounted PSU (DIN) 24 V DC 4.2 A 100.8 W No. of outputs:1 x Content 1 pc(s)

Description

Mean corrugated has its rail power supplies (DIN-rail) of the series HDR the Type HDR-100 with 100 W power. Especially in the building automation and building control, the power supplies for use, since they all comply with protection class II The HDR-family of MEAN CORRUGATED has a step-shaped plastic housing, has an input voltage range of 85 to 264 VAC (also available) and offers 277 VAC models with 5 V, 12 V, 15 V, 24 V and 48 V.
Thanks to the slim design measures the height of all power supplies only 90 mm, the width 4 SU (70 mm). They can be used on the standardised DIN rail TS-35/7.5 and TS-35/15. To their properties also include a low no-load consumption of less 0,3W, a high degree of efficiency up to 91% and an adjustable DC output voltage as well as a wide operating temperature range (-30 to +70 °C). Also a LED display for operation is available.
The HDR-series of MEAN CORRUGATED meets the requirements of European Standard EN61000-3-2 class A, as well as all safety regulations according to UL 60950-1, UL508 and EN 61558-2-16.
You can find the power supplies for use in the industrial control and in electromechanical devices.

This text is machine translated.
