MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 17.64
-33 %
€
Highlights & Details
DIN-Rail Mounting Single Output 1-phase power: 15 W
- Directly mountable onto the DIN-rail
- Closed design, contact-protected screw connections
- Universal input
- Overload protection through current limit, auto-recovery
- Protected against short circuit, overload and overvoltage
- Low idle power
- LED display Power on
- Insulation category II
Technical specifications
- Nominal input voltage
230 V/AC
115 V/AC
- Type
Pulsed
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85-264 V AC
- Input voltage (max.)
264 V AC
- Max. output current
0.63 A
- Output current (max.) - rounded
630 mA
15.2 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 17.5 x 54.5 x 90 mm
- Weight
78 g
- Output voltage (max.)
29 V DC
- Output voltage (min.)
21.6 V DC
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-30 °C
- Manufacturer part #
HDR-15-24
- Content
1 pc(s)
- MTBF
1166000 h
- Width
54.5 mm
- Height
90 mm
- Length
17.5 mm
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- Type
HDR-15-24
- Factory colour
Multicolour
- Screen size diagonal (inches)
24 inch
Variants(All information is without VAT, plus shipping costs)
Power
Input voltage (max.)
Output voltage (nominal)
Output voltage
Output type (power supply units)
Nominal input voltage
No. of outputs
Output current (max.) - rounded
Product type
Min. input voltage
MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
This article
15.2 W
264 V AC
24 V DC
24 V DC
Adjustable
230 V/AC
1 x
630 mA
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 11.76*
MEAN WELL HDR-30-5 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)
15 W
264 V AC
5 V DC
5 V DC
Adjustable
230 V/AC
1 x
3 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 14.28*
MEAN WELL HDR-30-48 Rail mounted PSU (DIN) 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)
36 W
264 V AC
48 V DC
48 V DC
Adjustable
230 V/AC
1 x
750 mA
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 14.28*
MEAN WELL HDR-30-24 Rail mounted PSU (DIN) 24 V DC 1.5 A 36 W No. of outputs:1 x Content 1 pc(s)
36 W
264 V AC
24 V DC
24 V DC
Adjustable
230 V/AC
1 x
1.5 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 14.28*
MEAN WELL HDR-30-15 Rail mounted PSU (DIN) 15 V DC 2 A 30 W No. of outputs:1 x Content 1 pc(s)
30 W
264 V AC
15 V DC
15 V DC
Adjustable
230 V/AC
1 x
2 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 14.28*
MEAN WELL HDR-30-12 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:1 x Content 1 pc(s)
24 W
264 V AC
12 V DC
12 V DC
Adjustable
230 V/AC
1 x
2 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 14.28*
MEAN WELL HDR-100-48 Rail mounted PSU (DIN) 48 V DC 1.92 A 92.2 W No. of outputs:1 x Content 1 pc(s)
92.2 W
264 V AC
48 V DC
48 V DC
Adjustable
230 V/AC
1 x
1.92 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 27.72*
MEAN WELL HDR-100-24 Rail mounted PSU (DIN) 24 V DC 3.83 A 92 W No. of outputs:1 x Content 1 pc(s)
92 W
264 V AC
24 V DC
24 V DC
Adjustable
230 V/AC
1 x
3.83 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 27.72*
MEAN WELL HDR-100-15 Rail mounted PSU (DIN) 15 V DC 6.13 A 92 W No. of outputs:1 x Content 1 pc(s)
92 W
264 V AC
15 V DC
15 V DC
Adjustable
230 V/AC
1 x
6.13 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 27.72*
MEAN WELL HDR-100-12 Rail mounted PSU (DIN) 12 V DC 7.1 A 85.2 W No. of outputs:1 x Content 1 pc(s)
85.2 W
264 V AC
12 V DC
12 V DC
Adjustable
230 V/AC
1 x
7.1 A
Rail mounted PSU (DIN)
85 V AC
Minimum order quantity: 1
Multiple: 1
€ 27.72*
Documents & Downloads
Datasheet
Datasheet 1894093 MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1894093 MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 1894093 MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1894093 MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
Description
Even smaller and more powerful than the first generation (DR series) on DIN rail power supplies (DIN-rail) in a plastic housing is the new series HDR of mean well. Especially in the building automation and building control, the power supplies with 15 W for application, which correspond to protection class II The HDR-family of mean corrugated has a step-shaped plastic housing, has an input voltage range of 85 to 264 VAC (also available) and offers 277 VAC models with 5 V, 12 V, 15 V, 24 V and 48 V.
Thanks to the slim design measures the height is only 90 mm, the width 1 SU (17.5 mm). They can be used on the standardised DIN rail TS-35/7.5 and TS-35/15. To their properties also include a low no-load consumption of< 0,3W, a high degree of efficiency up to 91% and an adjustable DC output voltage as well as a wide operating temperature range (-30 to +70 °C). Also a LED display for operation is available.
The HDR-series of mean corrugated meets the European standard DIN EN 43880, the regulation of the European Union for harmonic current according to EN61000-3-2 class A, as well as all safety regulations according to UL 60950-1, UL508 and EN 61558-2-16.
This text is machine translated.
Thanks to the slim design measures the height is only 90 mm, the width 1 SU (17.5 mm). They can be used on the standardised DIN rail TS-35/7.5 and TS-35/15. To their properties also include a low no-load consumption of< 0,3W, a high degree of efficiency up to 91% and an adjustable DC output voltage as well as a wide operating temperature range (-30 to +70 °C). Also a LED display for operation is available.
The HDR-series of mean corrugated meets the European standard DIN EN 43880, the regulation of the European Union for harmonic current according to EN61000-3-2 class A, as well as all safety regulations according to UL 60950-1, UL508 and EN 61558-2-16.
This text is machine translated.
Features
- Directly on the DIN-rail mountable
- Closed design, touch-proof screw terminals
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Low idle power
- LED display for power-on
- Insulation category II
Frequently Bought Together
(*All information is plus legal VAT) This article
-33%
MEAN WELL HDR-15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15.2 W No. of outputs:1 x Content 1 pc(s)
Conrad Electronic
€ 17.64
€ 11.76*

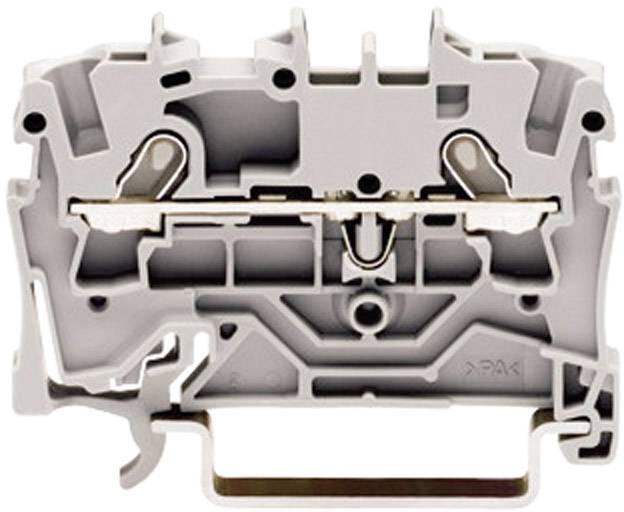

WAGO 2001-1201 Continuity 4.20 mm Pull spring Configuration: L Grey 1 pc(s)
