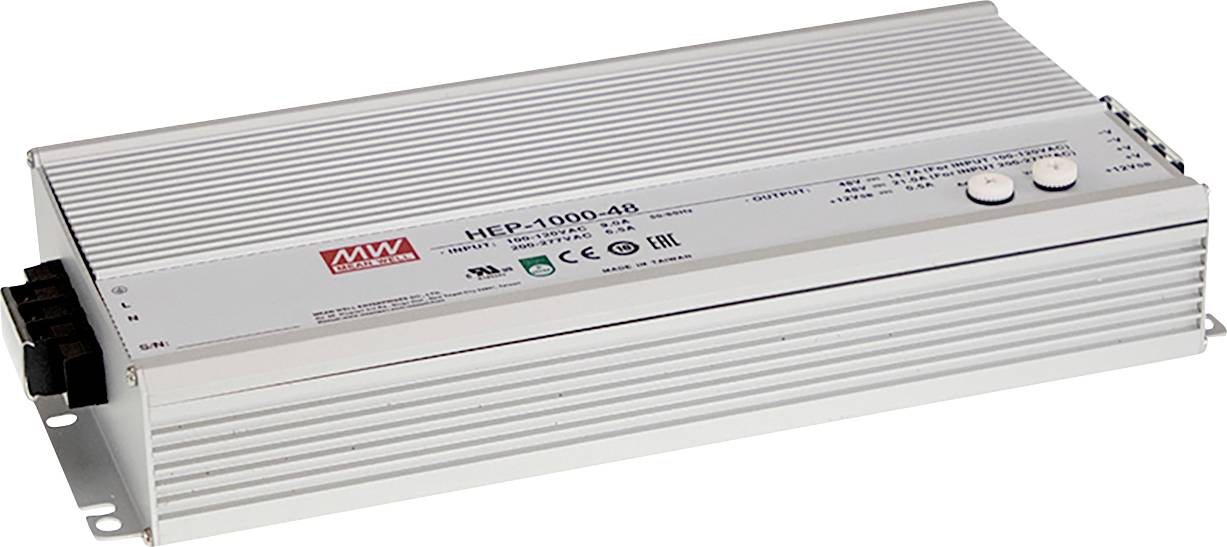

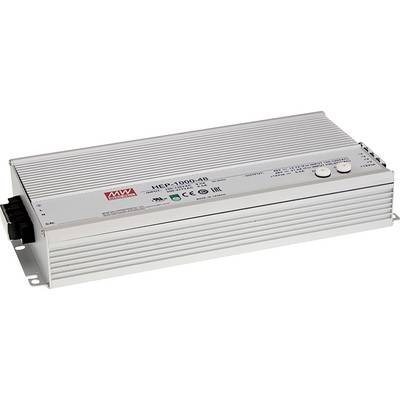

MEAN WELL HEP-1000-48W AC/DC converter 57.6 V 27.500 A 1600 W Content 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
MeanWell HEP-1000 SNT for rough industrials
- DC-compatible, output voltage adjustable, AUX-power supply, remote function, output current can be programmed, DC-OK-signal, parallel function
Technical specifications
- Min. Input voltage 90 V/AC
- Max. input voltage 264 V/AC
- Min. Input voltage 127 V/DC
- Max. input voltage 370 V/DC
- Input current 8.5 A
- Product type
AC/DC converter
- Type
HEP-1000-48W
- Min. input voltage
90 V
- Input voltage (max.)
264 V
- Output voltages
57.6 V
- Max. output current
27.500 A
- Output current (max.) - rounded
27.5 A
- Efficiency (max.)
93 %
1600 W
- Connection
Screw terminal
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 300 x 85 x 41 mm
- Height
41 mm
- Length
300 mm
- Width
85 mm
- Output voltage (max.)
57.6 V
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3435810 MEAN WELL HEP-1000-48W AC/DC converter 57.6 V 27.500 A 1600 W Content 1 pc(s)
Description
RPB-1600 is an AC/DC charger with an output of 1.6 kW and a high power density of up to 25 W/inch ³. Three predefined charging curves, especially for lead-acid batteries, are integrated in each model. Thanks to the PMBus and CANBus communication protocol, an additional curve can be programmed for other battery types, such as Li-ion batteries. Each model is cooled by a thermostatically controlled fan. Moreover, the RPB-1600 offers various protection mechanisms that offer the best security for the most varied applications.
