Buy MEAN WELL HEP-320-36A Industrial PSU 36 V DC 8.9 A 320 W

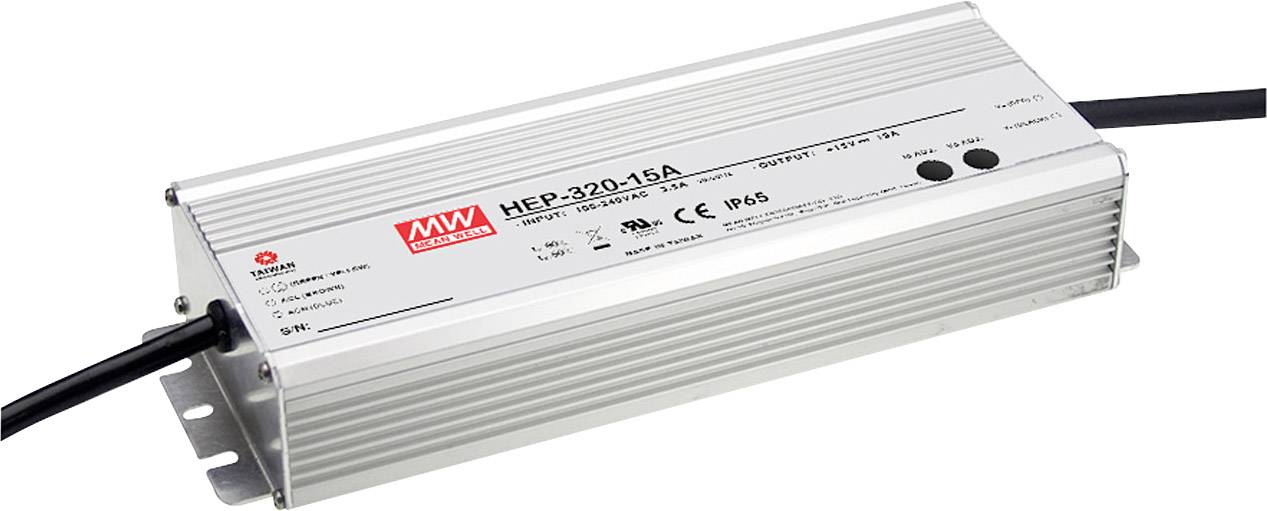

Converter module with cable connections, labelled as 'MEAN WELL', Model HEP-320-15A. Suitable for robust and weatherproof applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

A 36 V/8,9A MEAN CORRUGATED HEP -320-36 power.

Output 36 V DC / 8.9 A
Power 320 W
Open end cable

Technical specifications

Product type: Industrial PSU

Input voltage (max.): 305 V AC

Max. output current: 8.9 A

Output current (max.) - rounded: 8.9 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 252 x 90 x 43.8 mm

Output voltage (max.): 36 V DC

Connection: Open end cable

: 320 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): 70 °C

Operating temperature (min.): -55 °C

Weight: 1880 g

PSU features: open cable ends

Width: 90 mm

Height: 43.8 mm

Length: 252 mm

Type: HEP-320-36A

MTBF: 154200 h

PFC: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1562032 MEAN WELL HEP-320-36A Industrial PSU 36 V DC 8.9 A 320 W

User & Safety Instructions

User & Safety Instructions 1562032 MEAN WELL HEP-320-36A Industrial PSU 36 V DC 8.9 A 320 W

Information

Information 1562032 MEAN WELL HEP-320-36A Industrial PSU 36 V DC 8.9 A 320 W

Warranty Terms

Warranty Terms 1562032 MEAN WELL HEP-320-36A Industrial PSU 36 V DC 8.9 A 320 W

Description

The high-quality and low-noise AC/DC-industrial power supplies are available with outputs ranging from 100W to 600W available. Thanks to aluminum casing and complete filling with heat conductive silicone are the power supplies of the HEP-series for use in particularly harsh conditions: in case of high humidity or high dust occurrence, extreme temperatures, strong vibrations, high-altitude as well as with low ventilation.
Against the occurrence of dust and water have the power supplies to the IP65 degree of protection (also available with IP68), and have a vibration strength of up to 10g.
With a degree of efficiency of up to 96% and the cooling by free air convection work reliably at ambient temperatures between -55 and +70 °C. The HEP-series cover the wide input voltage range of 90 to 305 VAC and they are in output voltages of 12 V, 15 V, 24 V, 36 V, 48 V and 54 V available. How to adjust the world to industrial applications of all kinds, such as Telecommunication Systems, display and billboards in the outdoor area, oil or mine shaft systems
