Buy MEAN WELL HEP-480-48A SMPSU 50.4 V DC 10 A 480 W

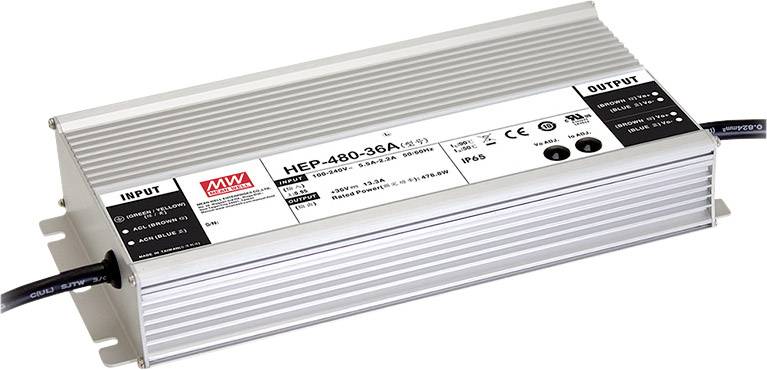

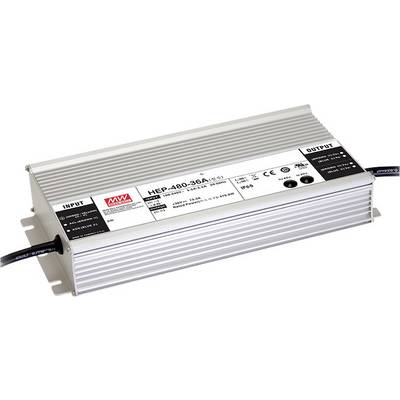

Power supply with model number 'HEP-480-36A', silver casing, with input and output connections, technical specifications visible.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEANWELL power supply series HEP -480-48 A IP65

Output 50.4 V DC / 10 A
Power 480 W
Open end cable

Technical specifications

Product type: SMPSU

Input voltage (max.): 305 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

Min. input voltage: 90 V AC

Dim: (L x W x H) 262 x 125 x 43.8 mm

Output voltage (max.): 50.4 V DC

Connection: Open end cable

: 480 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): 65 °C

Operating temperature (min.): -55 °C

Weight: 2.800 g

PSU features: Adjustable voltage output
open cable ends

Width: 125 mm

Height: 43.8 mm

Length: 262 mm

Type: HEP-480-48A

Output current (min.): 5 A

Output voltage (min.): 40.8 V DC

PFC: Yes (built-in)

Max. temperature: 65 °C

Min. temperature: -55 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1837936 MEAN WELL HEP-480-48A SMPSU 50.4 V DC 10 A 480 W

User & Safety Instructions

User & Safety Instructions 1837936 MEAN WELL HEP-480-48A SMPSU 50.4 V DC 10 A 480 W

Warranty Terms

Warranty Terms 1837936 MEAN WELL HEP-480-48A SMPSU 50.4 V DC 10 A 480 W

Description

The power supplies of the series HEP-480 supplement the family of high-quality and low-noise AC/DC-industrial power supplies of the series HEP of mean well, with outputs ranging from 100W to 600W. Thanks to aluminum casing and complete filling with heat conductive silicone are the power supplies of the HEP-series for use in particularly harsh conditions: in case of high humidity or high dust occurrence, extreme temperatures, strong vibrations, high-altitude as well as with low ventilation.
Against the occurrence of dust and water have the power supplies to the IP65 degree of protection (also available with IP68), and have a vibration resistance up to 10 G (HEP-600: 5G).
With a degree of efficiency of up to 96% and the cooling by free air convection work reliably at ambient temperatures between -55 and +70 °C. The HEP-series cover the wide input voltage range of 90 to 305 VAC and they are in output voltages of 12 V, 15 V, 24 V, 36 V, 48 V and 54 V available. How to adjust the world to industrial applications of all kinds, such as Telecommunication Systems, display and billboards in the outdoor area, oil or mine shaft systems.
