Buy MEAN WELL HLG-120H-12 LED driver, LED transformer 120 W 10 A 12 V not dimmable 1 pc(s)

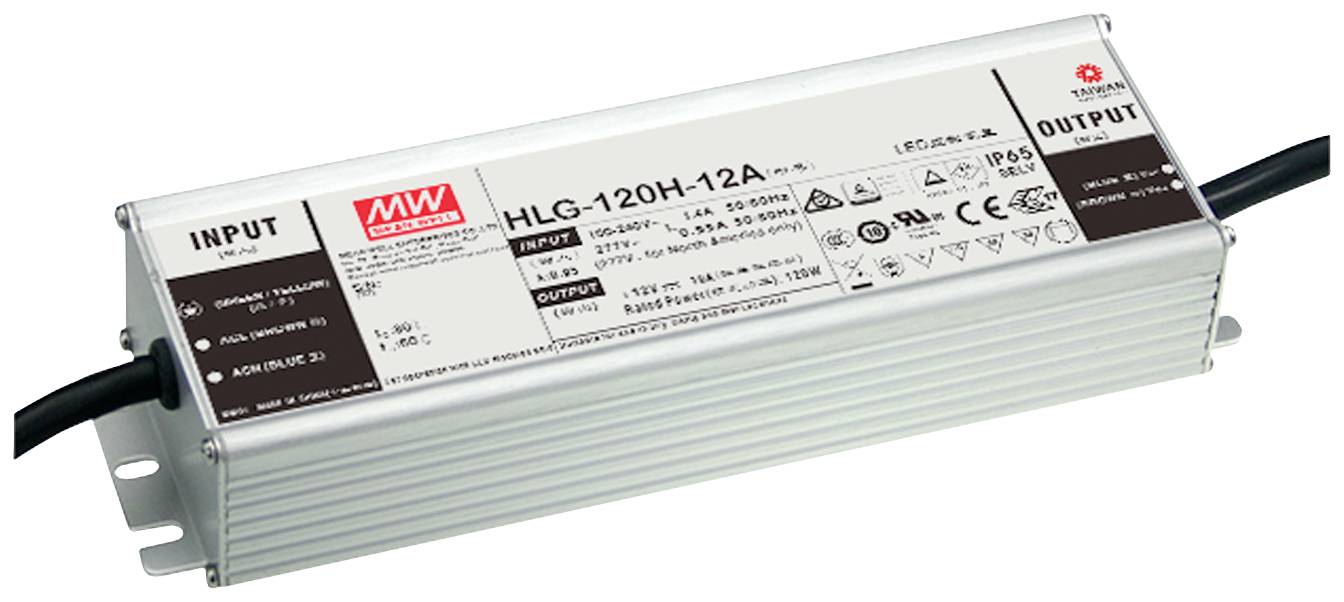

LED driver by Mean Well, Model HLG-120H-12A, for lighting applications, shows technical specifications and connections.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MeanWell HLG-120 IP65 Alu-SNT

12 V
10 A

Technical specifications

Product type: LED driver

Dim: (L x W x H) 220 x 68 x 38.8 mm

Output voltage (max.): 12 V

Output voltage (min.): 12 V

Test mark: EN61000-3-2. Class C. EN55015. EN61347-1. EN61347-2-13

Max. output current: 10 A

Output current (max.) - rounded: 10 A

Operating voltage: 90 V AC
305 V AC

Protection class: IP67

LED driver features: not dimmable

Connection: Braid

Max. power: 120 W

No. of outputs: 1 x

Output current (min.): 10 A

Input voltage (max.): 305 V AC
431 V DC

Min. input voltage: 90 V AC
127 V DC

Weight: 1120 g

Power (min.): 120 W

Power range: 120 up to 120 W

Type: Synchronised

Width: 68 mm

Height: 38.8 mm

Length: 220 mm

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Connection

Operating voltage

Max. power

LED driver features

Output current (max.) - rounded

Output voltage (max.)

Output voltage (min.)

MEAN WELL HLG-120H-12 LED driver, LED transformer 120 W 10 A 12 V not dimmable 1 pc(s)

Item no:3031806

This article

Braid

90 V AC305 V AC

120 W

not dimmable

10 A

12 V

MEAN WELL HLG-150H-12 LED driver, LED transformer Constant voltage, Constant current 150 W 12.5 A 12 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293633

Open end cable

115 V AC230 V AC

150 W

PFC circuitSurge protection

12.5 A

12 V DC

MEAN WELL HLG-150H-24 LED driver, LED transformer Constant voltage, Constant current 150 W 6.3 A 24 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293634

Open end cable

115 V AC230 V AC

150 W

PFC circuitSurge protection

6.3 A

24 V DC

MEAN WELL HLG-150H-36 LED driver, LED transformer Constant voltage, Constant current 150 W 4.2 A 36 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293635

Open end cable

115 V AC230 V AC

150 W

PFC circuitSurge protection

4.2 A

36 V DC

MEAN WELL HLG-185H-12 LED driver, LED transformer Constant voltage, Constant current 156 W 13 A 12 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293637

Open end cable

115 V AC230 V AC

156 W

PFC circuitSurge protection

13 A

12 V DC

MEAN WELL HLG-185H-24 LED driver, LED transformer Constant voltage, Constant current 187 W 7.8 A 24 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293639

Open end cable

115 V AC230 V AC

187 W

PFC circuitSurge protection

7.8 A

24 V DC

MEAN WELL HLG-185H-36 LED driver, LED transformer Constant voltage, Constant current 187 W 5.2 A 36 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293641

Open end cable

115 V AC230 V AC

187 W

PFC circuitSurge protection

5.2 A

36 V DC

MEAN WELL HLG-240H-12 LED driver, LED transformer Constant voltage, Constant current 192 W 16 A 12 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293643

Open end cable

115 V AC230 V AC

192 W

PFC circuitSurge protection

16 A

12 V DC

MEAN WELL HLG-240H-36 LED driver, LED transformer Constant voltage, Constant current 241 W 6.7 A 36 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293649

Open end cable

115 V AC230 V AC

241 W

PFC circuitSurge protection

6.7 A

36 V DC

MEAN WELL HLG-320H-12 LED driver, LED transformer Constant voltage, Constant current 264 W 22 A 12 V DC PFC circuit, Surge protection 1 pc(s)

Item no:1293669

Open end cable

115 V AC230 V AC

264 W

PFC circuitSurge protection

22 A

12 V DC

Documents & Downloads

Datasheet

Datasheet 3031806 MEAN WELL HLG-120H-12 LED driver, LED transformer 120 W 10 A 12 V not dimmable 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3031806 MEAN WELL HLG-120H-12 LED driver, LED transformer 120 W 10 A 12 V not dimmable 1 pc(s)

Warranty Terms

Warranty Terms 3031806 MEAN WELL HLG-120H-12 LED driver, LED transformer 120 W 10 A 12 V not dimmable 1 pc(s)

Description

LED power supply in Metal housing with an input voltage range from 90 to 305 V/AC. Mixed-mode output (voltage-stabilised up to a maximum of current with the following current stabilisation C.V. + C.C.). Protection class IP67

This text is machine translated.

Features

Universal input
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Built-in PFC circuit
For LED lighting applications
EN 61000-3-2, Class C, EN55015, EN 61347-1, EN 61347-2-13

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
