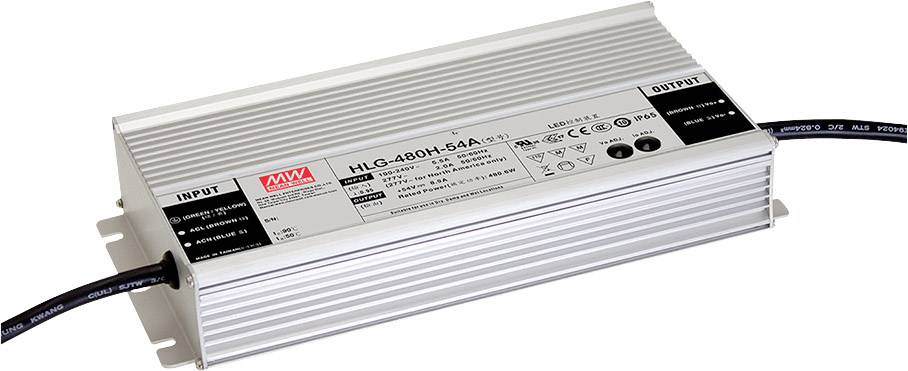

MEAN WELL HLG-480H-30A LED driver Constant voltage, Constant current 480 W 16 A 30 V DC Outdoor, PFC circuit, adjustable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED driverHLG-480H-30A
- Constant voltage, Constant current
- 30 V DC
- 16 A
Technical specifications
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 244.2 x 68 x 38.3 mm
- Factory colour
Aluminium
- Output voltage (max.)
30 V DC
- Max. output current
16 A
- Output current (max.) - rounded
16 A
- Operating voltage
115 V AC
230 V AC
- Protection class
I
- LED driver features
Outdoor
PFC circuit
adjustable
Surge protection
Overvoltage
IP65
- Connection
Open end cable
- Max. power
480 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Inputs
1
- Weight
2.800 g
- Power range
480 W (max)
- Type
Synchronised
- Width
68 mm
- Height
38.3 mm
- Length
244.2 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1714203 MEAN WELL HLG-480H-30A LED driver Constant voltage, Constant current 480 W 16 A 30 V DC Outdoor, PFC circuit, adjustable
User & Safety Instructions
User & Safety Instructions 1714203 MEAN WELL HLG-480H-30A LED driver Constant voltage, Constant current 480 W 16 A 30 V DC Outdoor, PFC circuit, adjustable
Warranty Terms
Warranty Terms 1714203 MEAN WELL HLG-480H-30A LED driver Constant voltage, Constant current 480 W 16 A 30 V DC Outdoor, PFC circuit, adjustable
Description
With the HLG-480H power supplies for LED and lighting applications, MEANWELL completes the output power of the HLG family to 480W upwards.
MEANWELL's HLG-480H series with constant voltage and constant current (CV+CC) has a built-in PFC circuit and a high efficiency of up to 95%. Depending on the model, they have a dimming function or a fixed or adjustable output voltage or output current. Both series follow the powerful and reliable design of the HLG family
This text is machine translated.
MEANWELL's HLG-480H series with constant voltage and constant current (CV+CC) has a built-in PFC circuit and a high efficiency of up to 95%. Depending on the model, they have a dimming function or a fixed or adjustable output voltage or output current. Both series follow the powerful and reliable design of the HLG family
This text is machine translated.
Features
- Jet water and dust-proof
- Ideal for street lighting and sophisticated lighting systems
- Worldwide use
- Heavy duty metal casing
- Built-in protection against overvoltage, overheating, overload and short circuit
- Passive cooling
- Approvals: F, GS, CE, UL.
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
