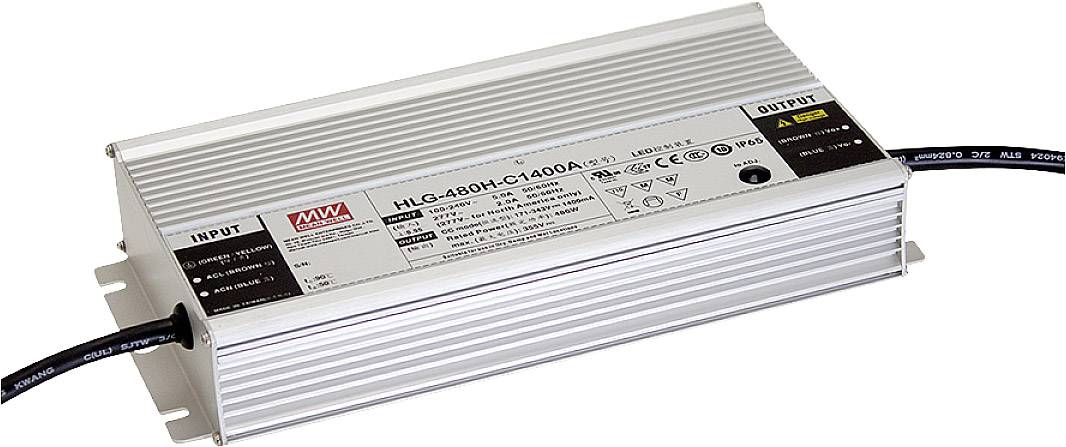

MEAN WELL HLG-480H-C1400A LED driver Constant current 480 W 700 - 1400 mA 171 - 343 V DC adjustable, not dimmable, Surge
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HLG-480H-C1400A
- Constant current
- 171 - 343 V DC
- 700 - 1400 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 262 x 125 x 43.8 mm
- Factory colour
Metal
- Output voltage (max.)
343 V DC
- Output voltage (min.)
171 V DC
- Test mark
UL, CB
- Max. output current
1400 mA
- Output current (max.) - rounded
1.4 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
adjustable
not dimmable
Surge protection
Overvoltage
Outdoor
PFC circuit
IP65
- Connection
Open end cable
- Max. power
480 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
700 mA
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
90 V AC
127 V DC
- Weight
2800 g
- Power range
480 W (max)
- Type
Pulsed
- Width
125 mm
- Height
43.8 mm
- Length
262 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237736 MEAN WELL HLG-480H-C1400A LED driver Constant current 480 W 700 - 1400 mA 171 - 343 V DC adjustable, not dimmable, Surge
User & Safety Instructions
User & Safety Instructions 2237736 MEAN WELL HLG-480H-C1400A LED driver Constant current 480 W 700 - 1400 mA 171 - 343 V DC adjustable, not dimmable, Surge
Warranty Terms
Warranty Terms 2237736 MEAN WELL HLG-480H-C1400A LED driver Constant current 480 W 700 - 1400 mA 171 - 343 V DC adjustable, not dimmable, Surge
Description
Features
- Constant current adjustable via internal potentiometer
- Universal input
- Metal housing
- Overload protection by current limitation, auto recovery
- Protected against short-circuit, over-voltage, over-temperature
- In-built PFC-circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
