MEAN WELL HLG-600H-24A LED driver, LED transformer Constant voltage, Constant current 600 W 25 A 24 V DC PFC circuit, Su
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
14-day return policy included
Highlights & Details
LED-switching power supply
- Constant voltage, Constant current
- 24 V DC
- 25 A
Technical specifications
- Protection class: IP65
- Input voltage (max.)
305 V AC
- Max. output current
25 A
- Output current (max.) - rounded
25 A
- Min. input voltage
90 V AC
- Dim

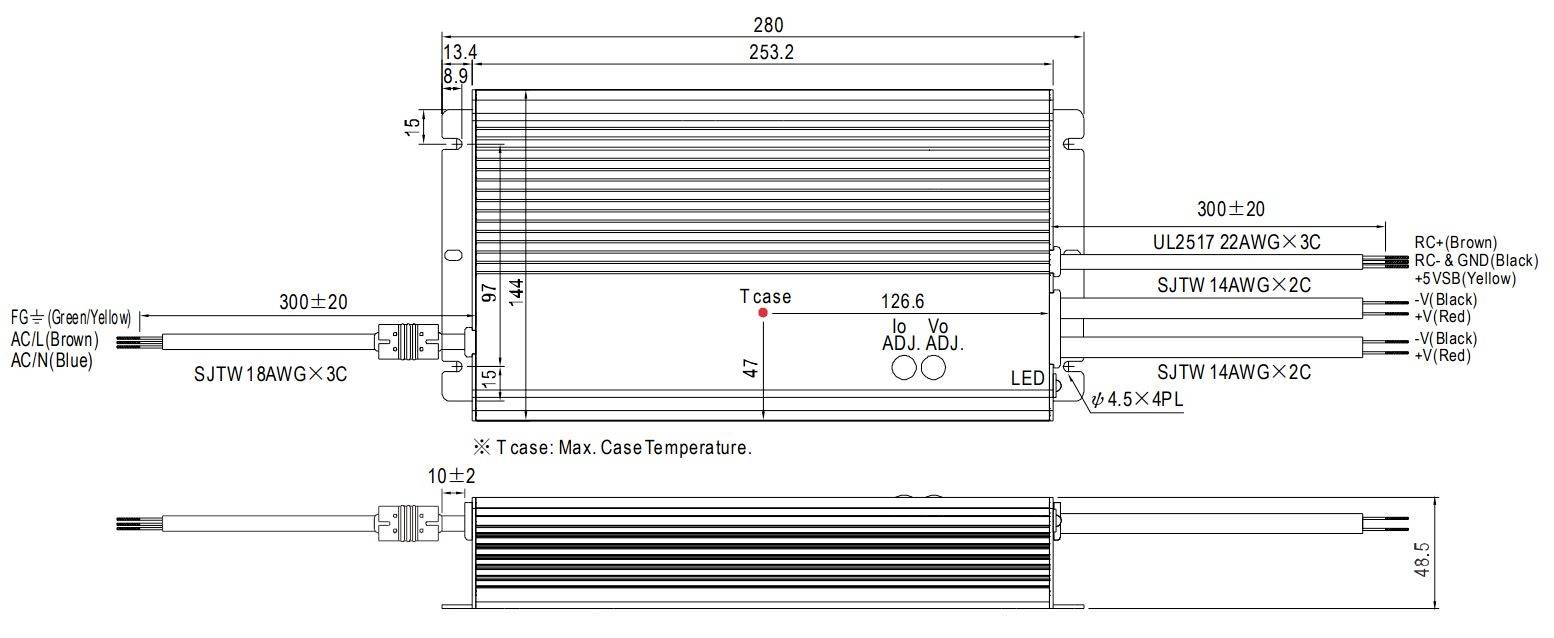

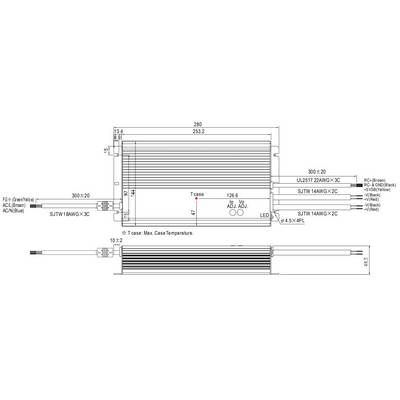

(L x W x H) 48.50 x 280.00 x 144.00 mm
- Output voltage (max.)
24 V DC
- Connection
Open end cable
IP65
- No. of outputs
1 x
- Weight
3900.00 g
- Type
Synchronised
- Width
280.00 mm
- Height
144.00 mm
- Length
48.50 mm
- Type
HLG-600H-24A
- Factory colour
Multi-colour
- LED driver features
PFC circuit
Surge protection
adjustable
- Type
Constant voltage
Constant current
- Max. power
600 W
- Operating voltage
115 V AC
230 V AC
- No. of inputs
1 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1293563 MEAN WELL HLG-600H-24A LED driver, LED transformer Constant voltage, Constant current 600 W 25 A 24 V DC PFC circuit, Su
User & Safety Instructions
User & Safety Instructions 1293563 MEAN WELL HLG-600H-24A LED driver, LED transformer Constant voltage, Constant current 600 W 25 A 24 V DC PFC circuit, Su
Information
Information 1293563 MEAN WELL HLG-600H-24A LED driver, LED transformer Constant voltage, Constant current 600 W 25 A 24 V DC PFC circuit, Su
Warranty Terms
Warranty Terms 1293563 MEAN WELL HLG-600H-24A LED driver, LED transformer Constant voltage, Constant current 600 W 25 A 24 V DC PFC circuit, Su
Description
LED-power supply in aluminium enclosure with an input voltage range of 90~305VAC. Mixed Mode output (voltage stable to maximum current with subsequent constant current) (C.V.+C.C.), protection class IP65
Features
- Jet water and dust-proof
- Ideal for street lighting and sophisticated lighting systems
- Worldwide use
- Heavy duty metal casing
- Built-in protection against overvoltage, overheating, overload and short circuit
- Passive cooling
- Approvals: F, GS, CE, UL.
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
