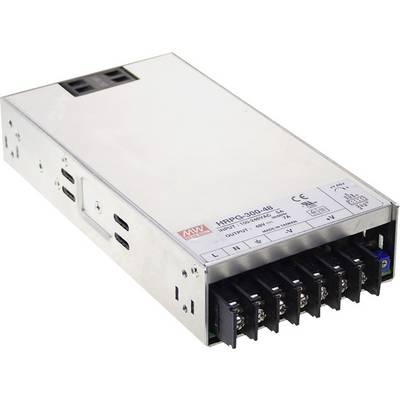

MEAN WELL HRPG-300-48 SMPSU 48 V DC 7 A 336 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details
Switching power supply case
- Output 48 V DC / 7 A
- Power 336 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
7 A
- Output current (max.) - rounded
7 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 199.00 x 105.00 x 41.00 mm
- Output voltage (max.)
48 V DC
- Connection
Screw terminal
336 W
- No. of outputs
1 x
- Type
closed
- Weight
953.33 g
- Type
Synchronised
- Width
105.00 mm
- Height
41.00 mm
- Length
199.00 mm
- Type
HRPG-300-48
- No. of inputs
1 x
- Output voltage
48 V/DC
- Output current (details)
7 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1293067 MEAN WELL HRPG-300-48 SMPSU 48 V DC 7 A 336 W
User & Safety Instructions
User & Safety Instructions 1293067 MEAN WELL HRPG-300-48 SMPSU 48 V DC 7 A 336 W
Information
Information 1293067 MEAN WELL HRPG-300-48 SMPSU 48 V DC 7 A 336 W
Warranty Terms
Warranty Terms 1293067 MEAN WELL HRPG-300-48 SMPSU 48 V DC 7 A 336 W
Description
Enclosed case, screw terminals · Universal input · Withstands 300V AC surge input for 5s · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Low profile · Built-in remote sense function · DC OK signal
Features
- Closed design (case), screw terminals
- Universal input
- Surge protection 300V AC/5s
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Kingebauter PFC circuit
- Low overall height.
- Sensor connection for correct voltage at the load
- DC-OK signal
