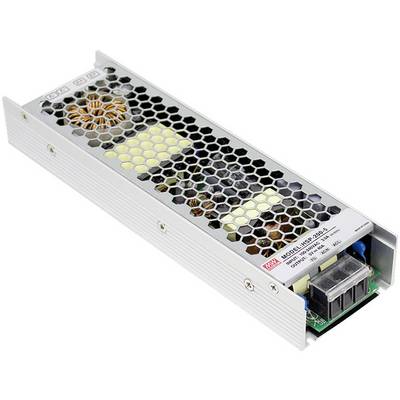

MEAN WELL HSP-300-5 SMPSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
AC/DC converter modules
- Output /
- Screw terminal
Technical specifications
- Type
switched-mode
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Dim
(L x W x H) 210 x 81 x 31 mm
- Connection
Screw terminal
- No. of outputs
1 x
- Type
closed
- Weight
800 g
- Type
Synchronised
- Width
81 mm
- Height
31 mm
- Length
210 mm
- Type
HSP-300-5
- No. of inputs
1 x
300 W
- Output voltage
12 V
- Output current (details)
2.5 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371698 MEAN WELL HSP-300-5 SMPSU
User & Safety Instructions
User & Safety Instructions 1371698 MEAN WELL HSP-300-5 SMPSU
Information
Information 1371698 MEAN WELL HSP-300-5 SMPSU
Warranty Terms
Warranty Terms 1371698 MEAN WELL HSP-300-5 SMPSU
Description
AC/DC converter modules in case enclosure zur PCB mounting with an input voltage range of 85-264 V/AC. cooling by free air convection.
Features
- case
- IRM-30-_: PCB mounting
- universal input
- protections: short circuit and over load
- cooling by free air convection
- low no load power consumption
- insulation class II
