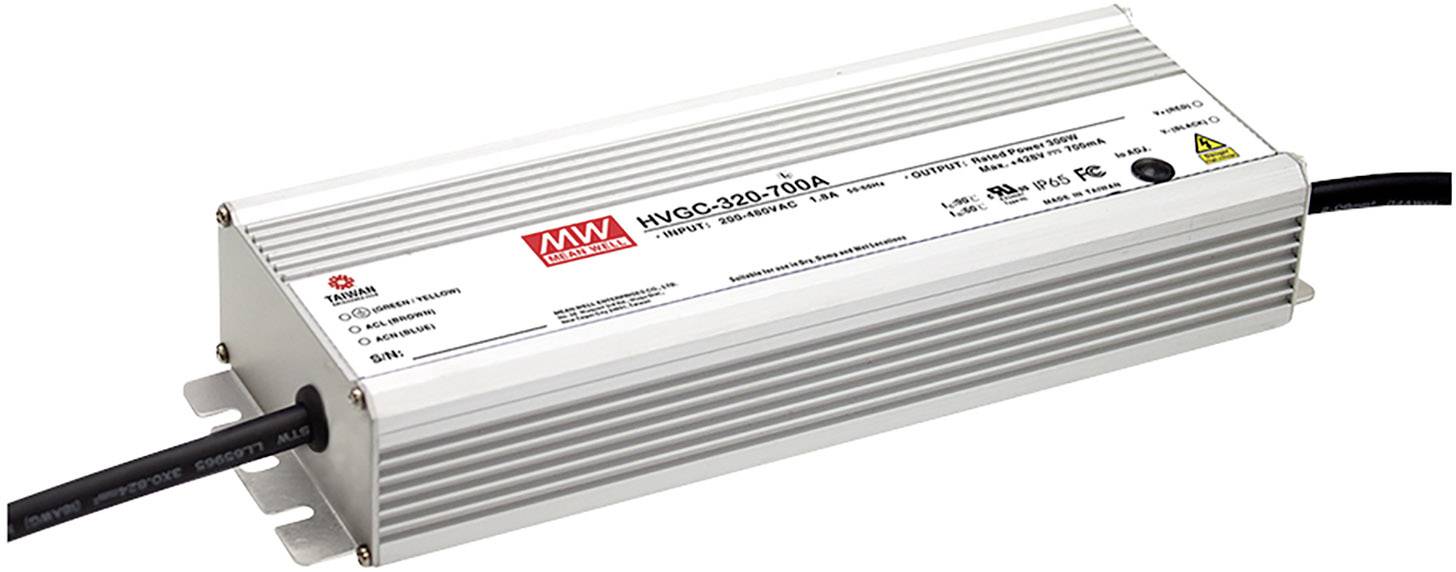

MEAN WELL HVGC-320-2100AB LED driver Constant current 320 W 1050 - 2100 mA 76.2 - 152.4 V DC adjustable, dimmable, 3-in-
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
14-day return policy included
Highlights & Details
HVGC-320-2100AB
- Constant current
- 76.2 - 152.4 V DC
- 1050 - 2100 mA
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 262 x 90 x 43.8 mm
- Factory colour
Metal
- Output voltage (max.)
152.4 V DC
- Output voltage (min.)
76.2 V DC
- Test mark
UL, ENEC, MM
- Max. output current
2100 mA
- Output current (max.) - rounded
2.1 A
- Operating voltage
230 V AC
- Protection class
I
- LED driver features
adjustable
dimmable
3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
Outdoor
PFC circuit
Surge protection
Overvoltage
IP65
- Connection
Open end cable
- Max. power
320 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1050 mA
- Input voltage (max.)
528 V AC
747 V DC
- Min. input voltage
180 V AC
254 V DC
- Inputs
1
- Weight
2000 g
- Power range
320 W (max)
- Type
Pulsed
- Width
90 mm
- Height
43.8 mm
- Length
262 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2113592 MEAN WELL HVGC-320-2100AB LED driver Constant current 320 W 1050 - 2100 mA 76.2 - 152.4 V DC adjustable, dimmable, 3-in-
User & Safety Instructions
User & Safety Instructions 2113592 MEAN WELL HVGC-320-2100AB LED driver Constant current 320 W 1050 - 2100 mA 76.2 - 152.4 V DC adjustable, dimmable, 3-in-
Warranty Terms
Warranty Terms 2113592 MEAN WELL HVGC-320-2100AB LED driver Constant current 320 W 1050 - 2100 mA 76.2 - 152.4 V DC adjustable, dimmable, 3-in-
Description
Features
- IP65
- Current limit adjustable via internal potentiometer, dimming via running control cable, 3 in 1 dimming function (1...10 V DC, PWM, 100k ohm potentiometer)
- Constant current
- Independent operating device
- Wide-range input
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
