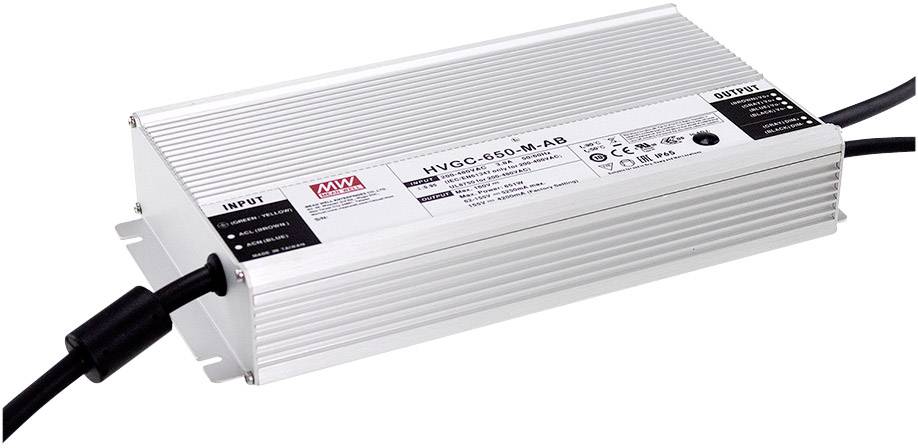

MEAN WELL HVGC-650-L-AB LED driver Constant power 649.6 W 2.8 - 3.5 A 92.8 - 232 V DC adjustable, dimmable, PFC circuit,
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Only 2 Piece(s) available
Highlights & Details
HVGC-650-L-AB
- Constant power
- 92.8 - 232 V DC
- 2.8 - 3.5 A
Technical specifications
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 280 x 144 x 48.5 mm
- Factory colour
Metal
- Output voltage (max.)
232 V DC
- Output voltage (min.)
92.8 V DC
- Test mark
CB, UL, ENEC
- Max. output current
3.5 A
- Output current (max.) - rounded
3.5 A
- Operating voltage
230 V AC
- Protection class
I
- LED driver features
adjustable
dimmable
PFC circuit
Surge protection
Overvoltage
3-in-1 dimmer
IP67
- Connection
Open end cable
- Max. power
649.6 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
2.8 A
- Input voltage (max.)
528 V AC
747 V DC
- Min. input voltage
180 V AC
254 V DC
- Inputs
1
- Weight
3900 g
- Power range
649.6 W (max)
- Type
Pulsed
- Width
144 mm
- Height
48.5 mm
- Length
280 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2113597 MEAN WELL HVGC-650-L-AB LED driver Constant power 649.6 W 2.8 - 3.5 A 92.8 - 232 V DC adjustable, dimmable, PFC circuit,
User & Safety Instructions
User & Safety Instructions 2113597 MEAN WELL HVGC-650-L-AB LED driver Constant power 649.6 W 2.8 - 3.5 A 92.8 - 232 V DC adjustable, dimmable, PFC circuit,
Warranty Terms
Warranty Terms 2113597 MEAN WELL HVGC-650-L-AB LED driver Constant power 649.6 W 2.8 - 3.5 A 92.8 - 232 V DC adjustable, dimmable, PFC circuit,
Description
Features
- Independent operating device
- Universal input
- Aluminum casing IP67
- Constant power supply (CP mode)
- 3 in 1 dimming function, adjustable from 0-10V DC, 10 V PWM, internal potentiometer
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- Surge immunity level 8 kV/4 kV
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
