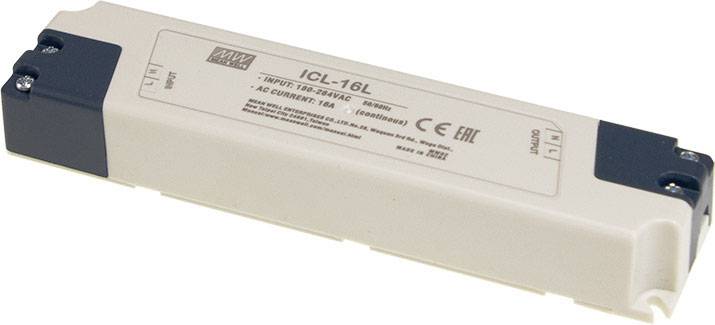

MEAN WELL ICL-16L MEANWELL inrush current limiter series: ICL-16R/L for inductive and capacitive loads Grey, Blue Protec
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Highlights & Details
MEANWELL inrush current limiter series: ICL-16R/L for inductive and capacitive loads
- Peak/RMS current limitation
- Allows installation of several switched-mode power supplies on one AC line
- For inductive and capacitive loads
- 180-264 Vac/16A permanently
- Internal thermal fuse
- Integrated bypass relay
- Capacitive loads up to 2500 µF
- For installation in the terminal
- This text is machine translated.
Technical specifications
- Product type
Built-in inrush current limiter
- Max. nominal current
16 A
- Input voltage
230 V AC
3680 VA
- Power rating (max.)
3680 VA
- Factory colour
Grey
Blue
- Dim
(W x H x D) 42 x 24 x 175 mm
- Weight
132 g
- Type A
Screw terminals
- Type B
Screw terminals
- Nominal output voltage
230 V AC
- Width
42 mm
- Height
24 mm
- Depth
175 mm
Protection class II
Documents & Downloads
Datasheet
Datasheet 2163526 MEAN WELL ICL-16L MEANWELL inrush current limiter series: ICL-16R/L for inductive and capacitive loads Grey, Blue Protec
User & Safety Instructions
User & Safety Instructions 2163526 MEAN WELL ICL-16L MEANWELL inrush current limiter series: ICL-16R/L for inductive and capacitive loads Grey, Blue Protec
Description
Features
- Peak/RMS current limitation
- Allows installation of several switched-mode power supplies on one AC line
- For inductive and capacitive loads
- 180-264 Vac/16A permanently
- Internal thermal fuse
- Integrated bypass relay
- Capacitive loads up to 2500 µF
- For installation in the terminal
