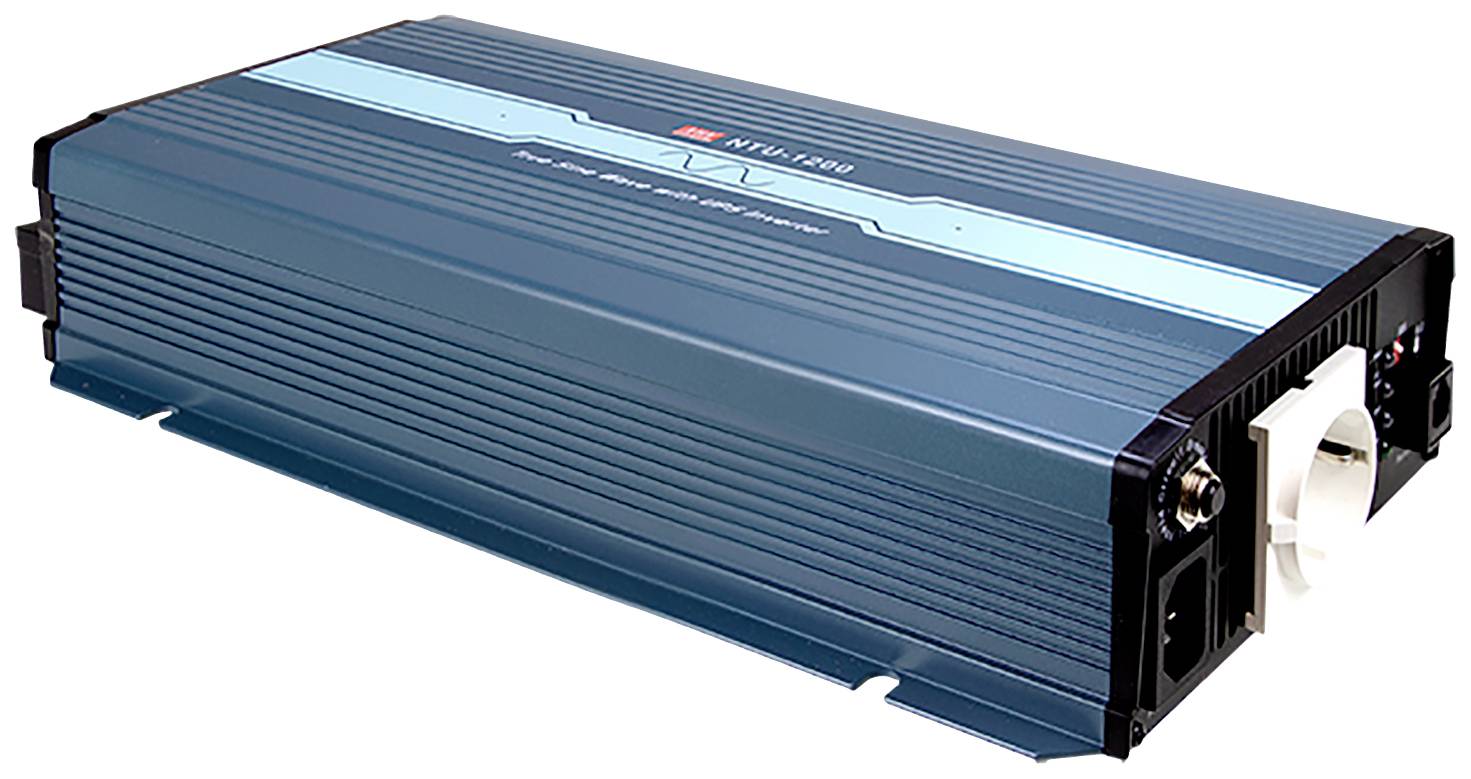

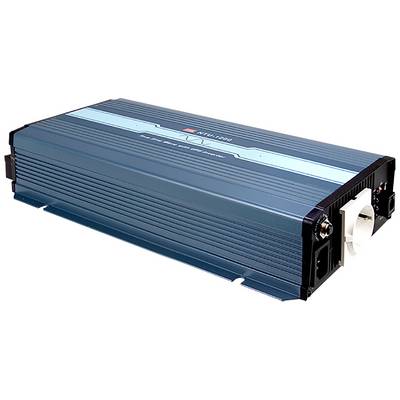

MEAN WELL Inverter 48 V DC - 230 V AC Sine wave, UPS function
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
- Input voltage
48 V DC
- Output
PG socket
- Weight
3300 g
- Cooling method
Fan
- Width
184.00 mm
- Height
70.00 mm
- Length
333 mm
- Type
NTU-1200-248EU
- Features
Sine wave
UPS function
- Test mark
IEC 62368-1,EN 62368-1
- Connection
Screw terminal
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Max. power
1200 W
