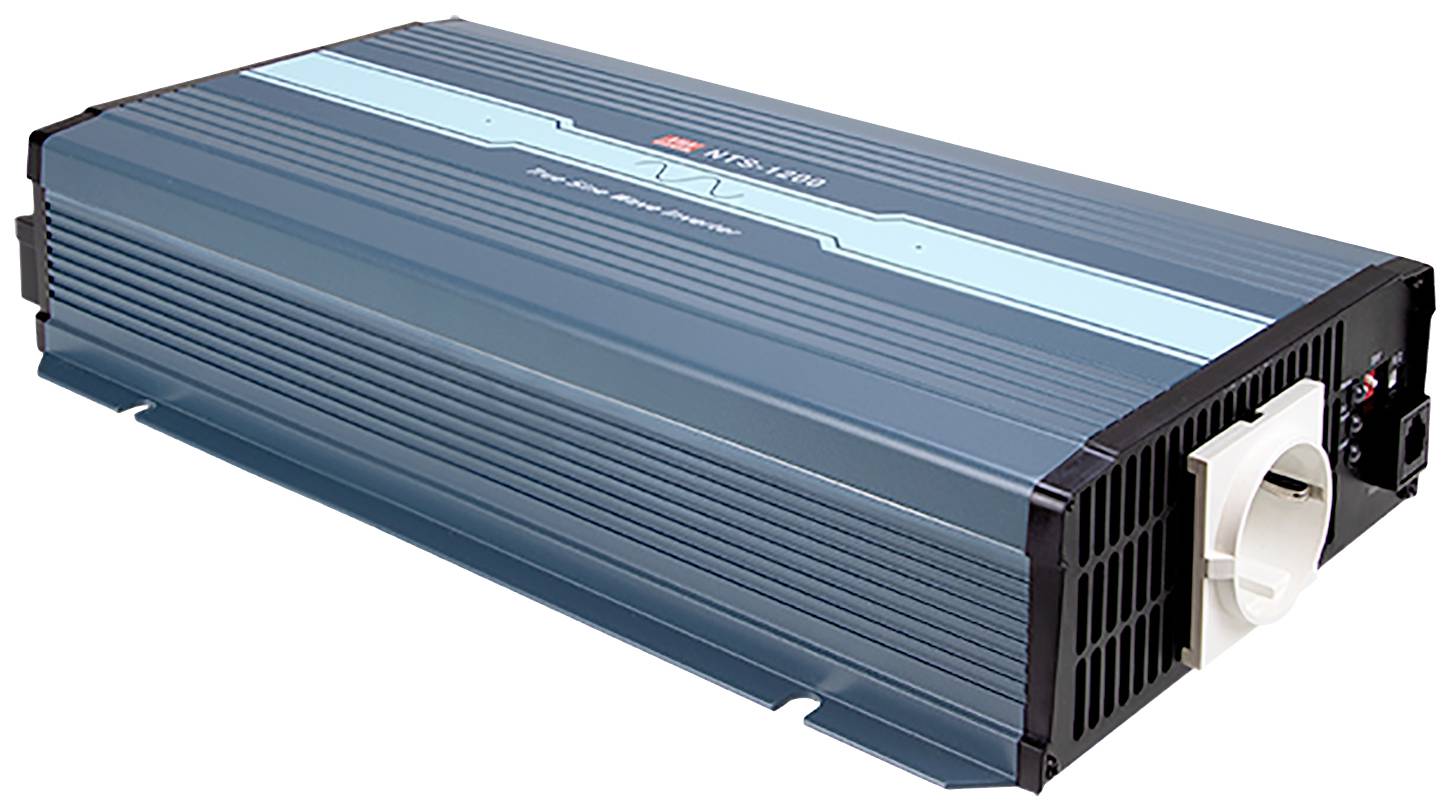

MEAN WELL Inverter NTS-1200-248EU 1.200 W 48 V DC - 230 V AC Sine wave, Remote operation
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
1.200 W
- Input voltage
48 V DC
- Output
PG socket
- Remote control
Yes
- Weight
3300 g
- Cooling method
Fan
- Width
184.00 mm
- Height
70.00 mm
- Length
333 mm
- Depth
333 mm
- Peak output power
2000 W
- Type
NTS-1200-248EU
- Features
Sine wave
Remote operation
- Test mark
EN 62368-1,IEC 62368-1
- Connection
Screw terminal
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Max. power
1200 W
- UKCA
yes
