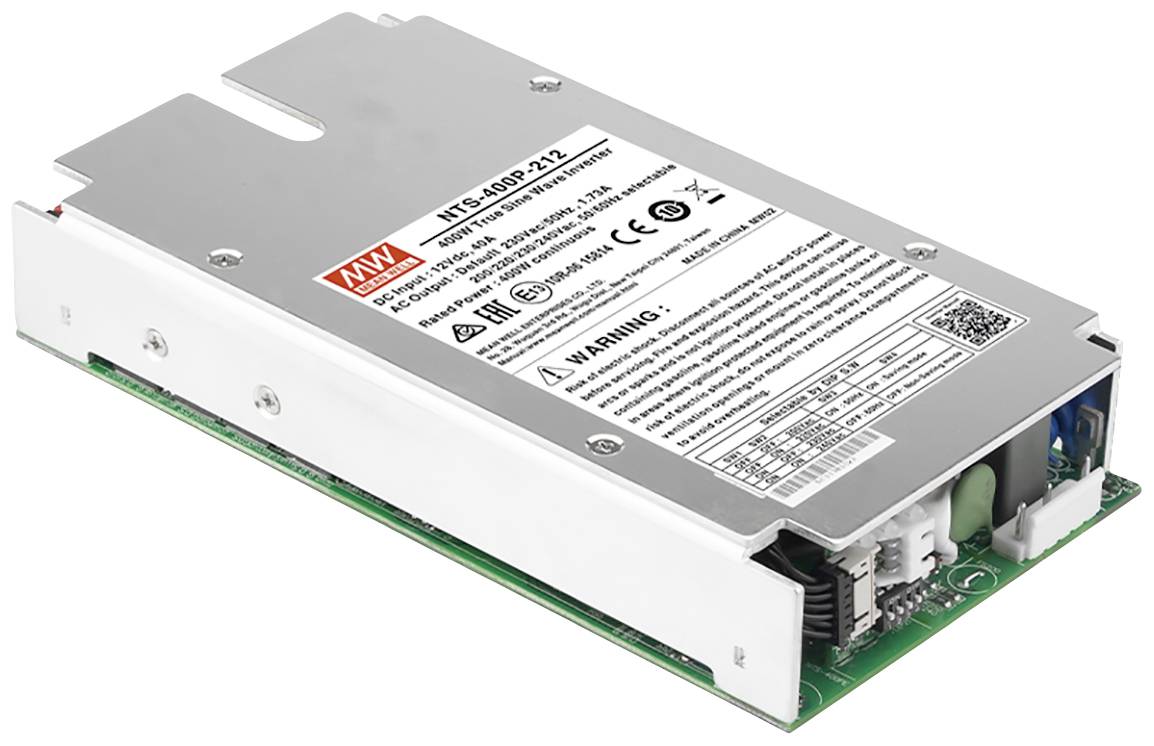

MEAN WELL Inverter NTS-400P-212 400 W 12 V DC - 230 V AC Remote operation, Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
400 W
- Input voltage
12 V DC
- Output
Pin strip (3-pin)
- Remote control
Yes
- Weight
750 g
- Cooling method
Convection
- Width
100.00 mm
- Height
32.00 mm
- Length
186 mm
- Depth
186 mm
- Peak output power
800 W
- Type
NTS-400P-212
- Features
Remote operation
Sine wave
- Test mark
IEC 62368-1
- Connection
Connector
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-20 °C
- Max. power
400 W
- UKCA
yes
