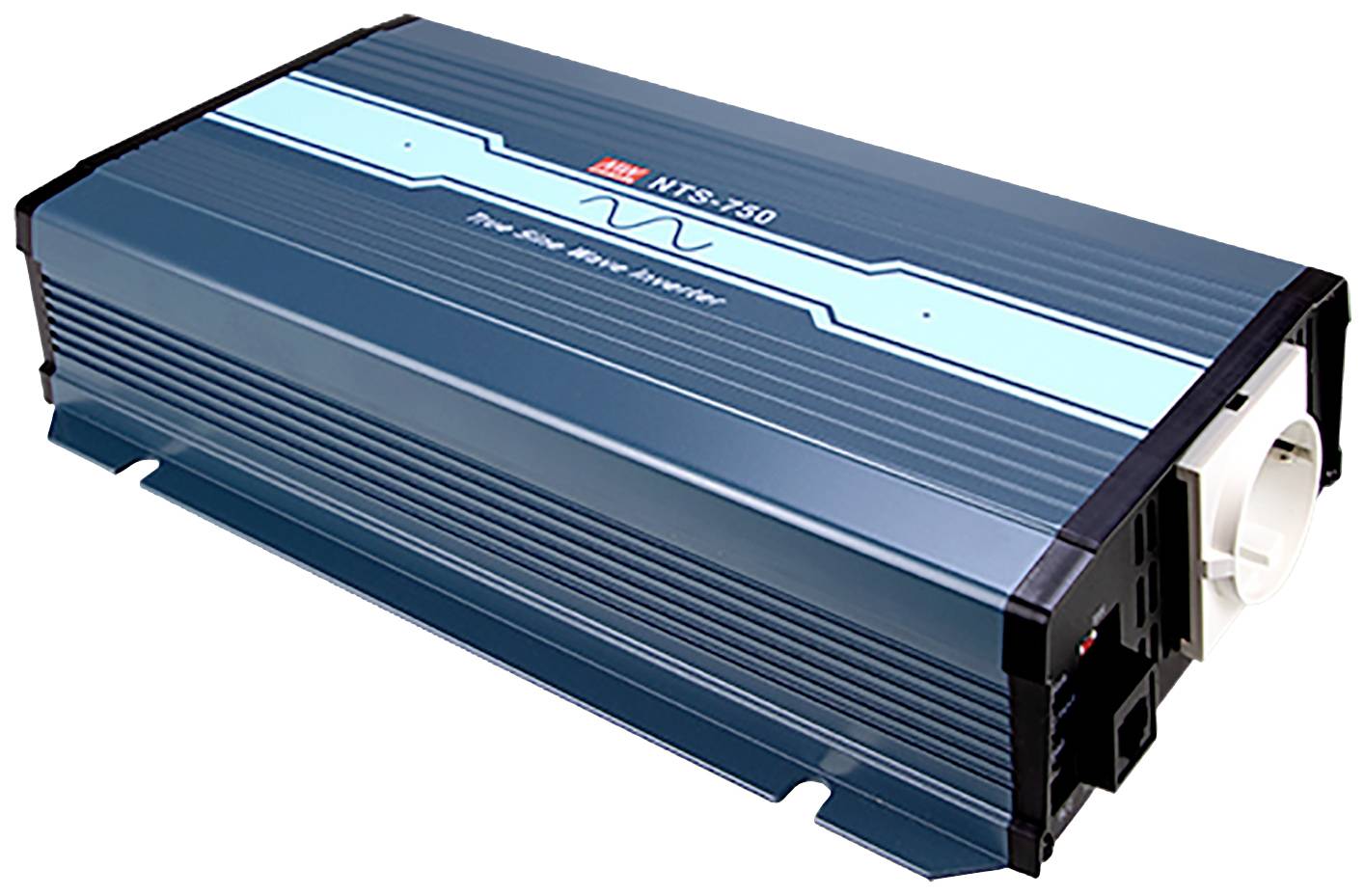

MEAN WELL Inverter NTS-750-248EU 750 W 48 V DC - 230 V AC Sine wave
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
750 W
- Input voltage
48 V DC
- Output
PG socket
- Remote control
Yes
- Weight
2300 g
- Cooling method
Fan
- Width
158.00 mm
- Height
67.00 mm
- Length
270 mm
- Depth
270 mm
- Peak output power
1500 W
- Type
NTS-750-248EU
- Features
Sine wave
- Test mark
IEC 62368-1,EN 62368-1
- Connection
Screw terminal
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Max. power
750 W
- UKCA
yes
