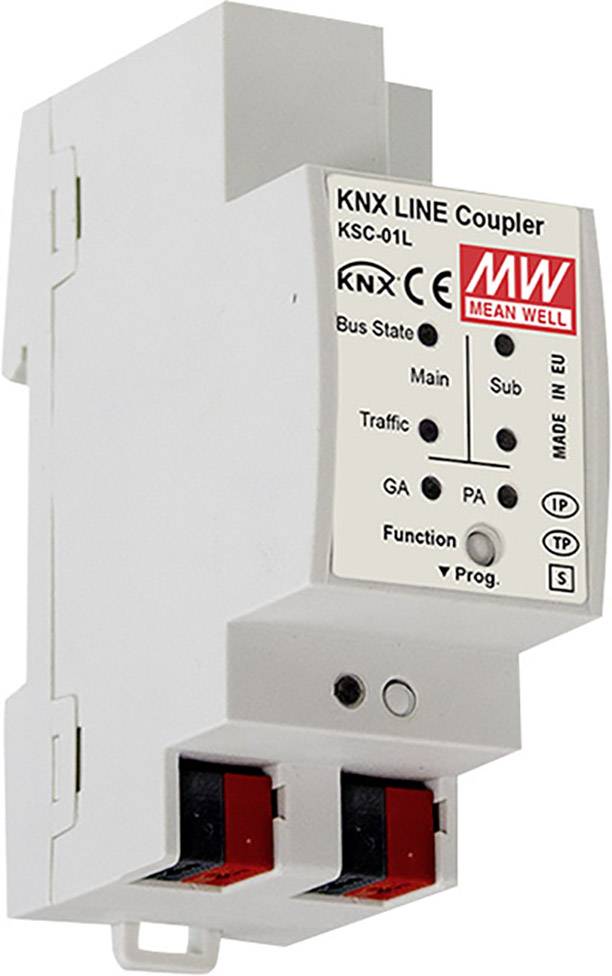

MEAN WELL KNX KSC-01L Line coupler KSC-01L
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL KNX line coupler KSC-01 L
- KNX TP line coupler/Repeater for the home automation
- Connects two KNX segments (KNX line/KNX range)
- Galvanic isolation between main and Sublinie
- Directly on the DIN-rail mountable
- Closed design, IP20
- Message frame filtering
- APDU (message frame length) up to 240 bytes
- Diagnostic operations
- Routing/Repeat/confirmation and setting functions
- LEDs show the operating states
- This text is machine translated.
Technical specifications
- Product type
Line coupler
- Series
KNX
not cloud-enabled
- Used at
Fixed
Indoors
IP20
- Power supply (LOV)
via PSU bus
- Operating voltage
30 V DC
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Factory colour
Grey
- Width
36 mm
- Height
90 mm
- Depth
71 mm
- Dim
(W x H x D) 36 x 90 x 71 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
66 g
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2143917 MEAN WELL KNX KSC-01L Line coupler KSC-01L
User & Safety Instructions
User & Safety Instructions 2143917 MEAN WELL KNX KSC-01L Line coupler KSC-01L
Warranty Terms
Warranty Terms 2143917 MEAN WELL KNX KSC-01L Line coupler KSC-01L
Description
Features
- KNX TP line coupler/Repeater for the home automation
- Connects two KNX segments (KNX line/KNX range)
- Galvanic isolation between main and Sublinie
- Directly on the DIN-rail mountable
- Closed design, IP20
- Message frame filtering
- APDU (message frame length) up to 240 bytes
- Diagnostic operations
- Routing/Repeat/confirmation and setting functions
- LEDs show the operating states
