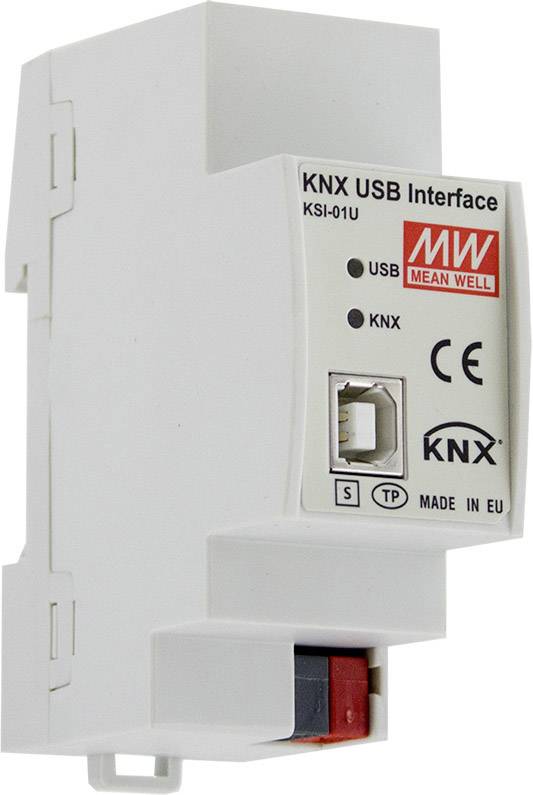

MEAN WELL KNX KSI-01U Interface module
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
KNX interface USB type B DIN-rail mounting
- External power supply is not necessary
- KNX protocol and system visualization
- Diagnostic operations
Technical specifications
- Product type
Interface module
- Series
KNX
- Used at
Indoors
IP20
- Power supply (LOV)
not required
- Operating voltage
24 V DC
5 V DC
- Data transfer (Smart Home)
Wired
- Mounting type
DIN rail
- Factory colour
Light grey
- Width
71 mm
- Height
90 mm
- Depth
36 mm
- Dim
(W x H x D) 71 x 90 x 36 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
60 g
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1897104 MEAN WELL KNX KSI-01U Interface module
User & Safety Instructions
User & Safety Instructions 1897104 MEAN WELL KNX KSI-01U Interface module
Information
Information 1897104 MEAN WELL KNX KSI-01U Interface module
Warranty Terms
Warranty Terms 1897104 MEAN WELL KNX KSI-01U Interface module
Description
A simple communication interface for systems and devices in the KNX-Building automation, extended Schukat his program the new KNX-USB interface of mean well. KSI-01U is used for bi-directional connection between a PC and the KNX installation bus. Thereby, the USB connection from the KNX bus galvanically isolated. The Interface runs on standard software, such as ETS and eitt (also in Raw-Frame-operating mode), as well as does the FALCON driver with other software. KSI-01 U supports long telegrams of up to 220 Byte APDU length and allows an easy handling of the software, as well as operating systems, the FALCON driver does not support, such as Linux.
This text is machine translated.
This text is machine translated.
Features
- KNX USB interface for home automation
- Directly on the DIN-rail mountable
- Enclosed design IP20
- KNX commissioning, addressing and setting parameters
- APDU (message frame length) up to 220 bytes.
Scope of delivery
- KNX interface
- User manual.
