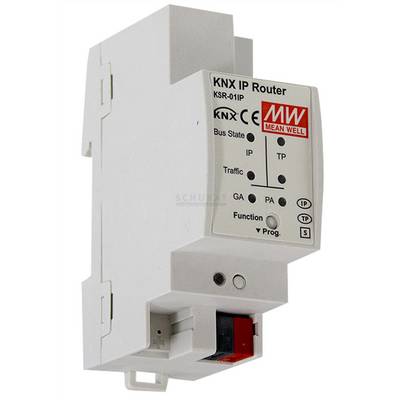

MEAN WELL KNX KSR-01IP IP router
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
KNX IP/TP Router DIN-rail mounting
- Directly on DIN-rail mountable
- External power supply is not necessary
- In-built web front-end page
Technical specifications
- Product type
IP router
- Series
KNX
- Used at
Indoors
IP20
- Power supply (LOV)
not required
- Operating voltage
24 V DC
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Factory colour
Light grey
- Width
71 mm
- Height
90 mm
- Depth
36 mm
- Dim
(W x H x D) 71 x 90 x 36 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
70 g
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1897105 MEAN WELL KNX KSR-01IP IP router
User & Safety Instructions
User & Safety Instructions 1897105 MEAN WELL KNX KSR-01IP IP router
Information
Information 1897105 MEAN WELL KNX KSR-01IP IP router
Warranty Terms
Warranty Terms 1897105 MEAN WELL KNX KSR-01IP IP router
Description
MEAN CORRUGATED sets new KNX IP router. The IP-TP-media coupler KSR-01 IP is a KNXnet/IP routing and tunneling device and works as a KNX IP lines/range coupler. It offers the possibility, all busgerate in the KNX bus system to address and makes the network operation less time consuming. LEDs indicate operation and filter states, malfunctions and faulty communication. The device also supports UPnP and its firmware can be connected via a built-in web front-End-Seite update.
This text is machine translated.
This text is machine translated.
Features
- KNX IP/TP router for home automation
- Directly on the DIN-rail mountable
- Enclosed design IP20
- No external power supply is required
- 4 KNX IP/TP Tunnelings
- Message frame filtering
- In-built web front-end side.
Scope of delivery
- KNX IP/TP Router
- User manual.
