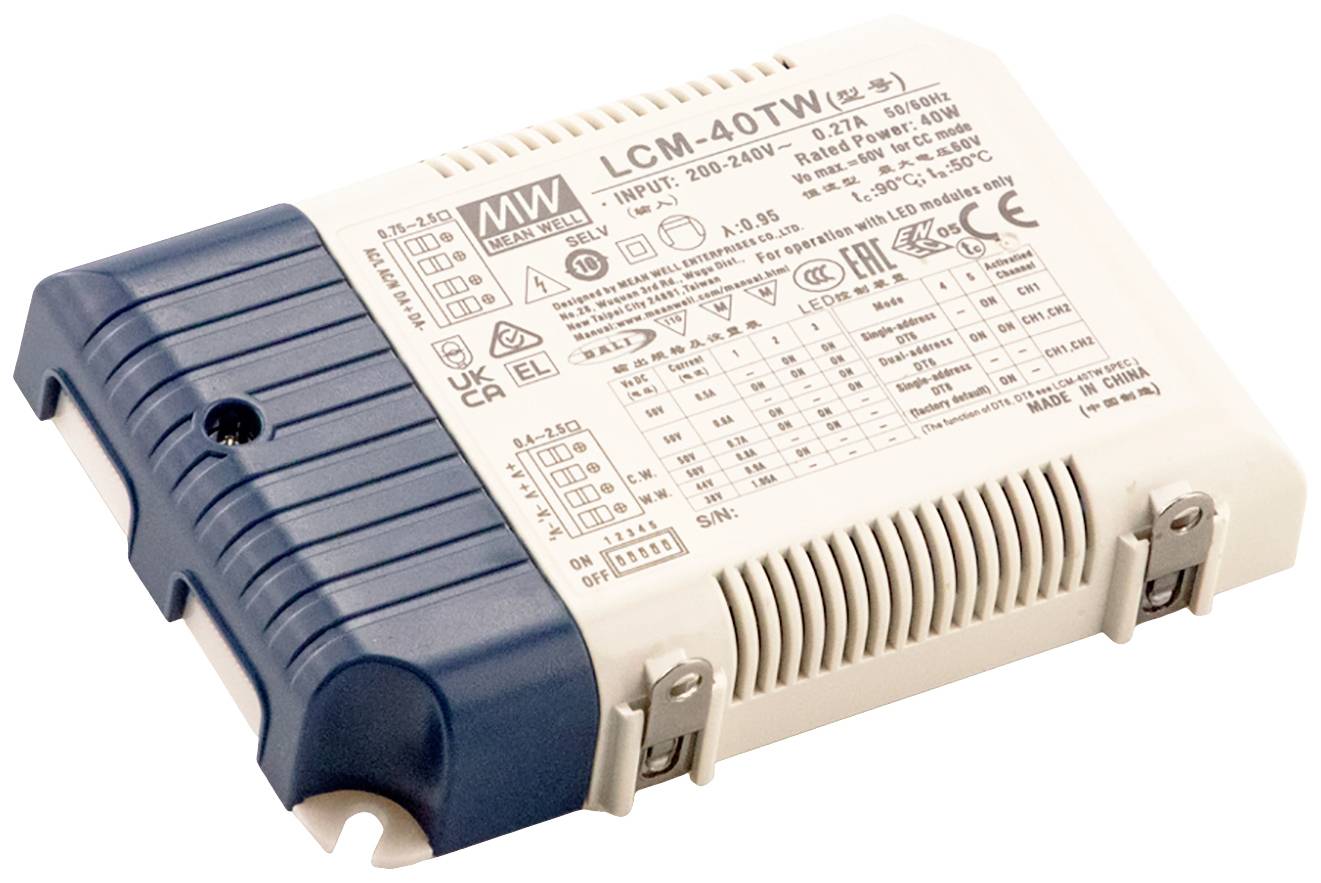

MEAN WELL LCM-40TW LED driver Constant current 40 W 0.7 A 20 - 50 V DALI 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC-LED power supply CP 40 W Dali-2
- Constant current
- 20 - 50 V
- 0.7 A
Technical specifications
- Connector type, input: Plug-in terminalInput current 0.23 AEfficiency 87 %Leakage current, max. 0.75 mASwitch-on current, max. 20 A
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 123.50 x 81.50 x 23 mm
- Output voltage (max.)
50 V
- Output voltage (min.)
20 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- LED driver features
DALI
- Max. power
40 W
- No. of outputs
2 x
- Output current (min.)
0.7 A
- Input voltage (max.)
277 V AC
390 V DC
- Min. input voltage
180 V AC
260 V DC
- Weight
240 g
- Power (min.)
40 W
- Power range
40 up to 40 W
- Width
81.50 mm
- Height
23 mm
- Length
123.50 mm
- Max. temperature
+85 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749276 MEAN WELL LCM-40TW LED driver Constant current 40 W 0.7 A 20 - 50 V DALI 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749276 MEAN WELL LCM-40TW LED driver Constant current 40 W 0.7 A 20 - 50 V DALI 1 pc(s)
Warranty Terms
Warranty Terms 2749276 MEAN WELL LCM-40TW LED driver Constant current 40 W 0.7 A 20 - 50 V DALI 1 pc(s)
Description
Features
- Application: LightingHousing: Enclosed plastic
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
