Buy MEAN WELL LDC-35B LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfac

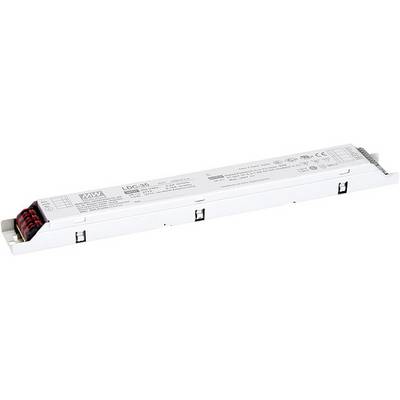

Long rectangular LED driver with white housing, model number 'LDC-35', red and black cables at one end, product logos and technical specifications on the surface.

A rectangular electronic device with 'LDC-35' printed on it, surrounded by technical specifications and certification marks.

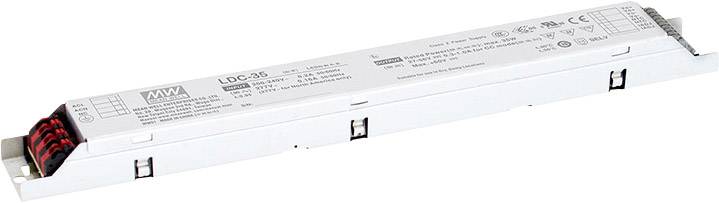

A white, rectangular LED power supply from Mean Well, model LDC-35. Several technical specifications are printed on it.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€ 27.72

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LDC-35B

Constant power
27 - 56 V DC
300 - 1000 mA

Technical specifications

Product type: LED driver

Type: Constant power

Dim: (L x W x H) 280 x 30 x 21 mm

Factory colour: Metal

Output voltage (max.): 56 V DC

Output voltage (min.): 27 V DC

Test mark: CB, UL, SELV, ENEC, MM

Max. output current: 1000 mA

Output current (max.) - rounded: 1 A

Operating voltage: 230 V AC

LED driver features: 3-in-1 dimmer
Suitable for flammable surfaces
Approved for use on furniture
PFC circuit
adjustable
Surge protection
Overvoltage
dimmable

Connection: Punchdown block

Max. power: 35 W

No. of outputs: 1 x

No. of inputs: 1 x

Output current (min.): 300 mA

Input voltage (max.): 295 V AC

Min. input voltage: 180 V AC

Inputs: 1

Weight: 220 g

Power range: 35 W (max)

Type: Pulsed

Width: 30 mm

Height: 21 mm

Length: 280 mm

Max. temperature: +80 °C

Min. temperature: -25 °C

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Max. power

LED driver features

Output current (max.) - rounded

MEAN WELL LDC-35B LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, adjustable, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2113493

This article

35 W

3-in-1 dimmerSuitable for flammable surfacesApproved for use on furniturePFC circuitadjustableSurge protectionOvervoltagedimmable

1 A

MEAN WELL LDC-80 LED driver Constant power 80 W 700 - 2100 mA 27 - 56 V DC not dimmable, PFC circuit, Approved for use on furniture, Surge protection, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:2113415

80 W

not dimmablePFC circuitApproved for use on furnitureSurge protectionOvervoltageSuitable for flammable surfaces

2.1 A

MEAN WELL LDC-55B LED driver Constant power 55 W 500 - 1600 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, adjustable, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2113494

55 W

3-in-1 dimmerSuitable for flammable surfacesApproved for use on furniturePFC circuitadjustableSurge protectionOvervoltagedimmable

1.6 A

MEAN WELL LDC-35DA LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC DALI, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2113535

35 W

DALISuitable for flammable surfacesApproved for use on furniturePFC circuitSurge protectionOvervoltagedimmable

1 A

MEAN WELL LDC-80B LED driver Constant power 80 W 700 - 2100 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, adjustable, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2113560

80 W

3-in-1 dimmerSuitable for flammable surfacesApproved for use on furniturePFC circuitadjustableSurge protectionOvervoltagedimmable

2.1 A

MEAN WELL LDC-55 LED driver Constant power 55 W 500 - 1600 mA 27 - 56 V DC not dimmable, PFC circuit, Approved for use on furniture, Surge protection, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:2113583

55 W

not dimmablePFC circuitApproved for use on furnitureSurge protectionOvervoltageSuitable for flammable surfaces

1.6 A

MEAN WELL LDC-80DA LED driver Constant power 80 W 1400 - 2100 mA 27 - 56 V DC DALI, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2113629

80 W

DALISuitable for flammable surfacesApproved for use on furniturePFC circuitSurge protectionOvervoltagedimmable

2.1 A

MEAN WELL LDC-35 LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC not dimmable, PFC circuit, Approved for use on furniture, Surge protection, Overvoltage, Suitable for flammable surfaces 1 pc(s)

Item no:2113631

35 W

not dimmablePFC circuitApproved for use on furnitureSurge protectionOvervoltageSuitable for flammable surfaces

1 A

MEAN WELL LDC-55DA LED driver Constant power 55 W 980 - 1600 mA 27 - 56 V DC DALI, Suitable for flammable surfaces, Approved for use on furniture, PFC circuit, Surge protection, Overvoltage, dimmable 1 pc(s)

Item no:2176639

55 W

DALISuitable for flammable surfacesApproved for use on furniturePFC circuitSurge protectionOvervoltagedimmable

1.6 A

Documents & Downloads

Datasheet

Datasheet 2113493 MEAN WELL LDC-35B LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfac

User & Safety Instructions

User & Safety Instructions 2113493 MEAN WELL LDC-35B LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfac

Warranty Terms

Warranty Terms 2113493 MEAN WELL LDC-35B LED driver Constant power 35 W 300 - 1000 mA 27 - 56 V DC 3-in-1 dimmer, Suitable for flammable surfac

Description

Features

3 in 1 dimming function, adjustable from 0-10V DC, 10 V PWM, potentiometer
Independent operating device
Universal input
Aluminium enclosure
Constant power supply (CP mode)
Flicker-free design
Adjustable output current
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
Built-in PFC circuit

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
