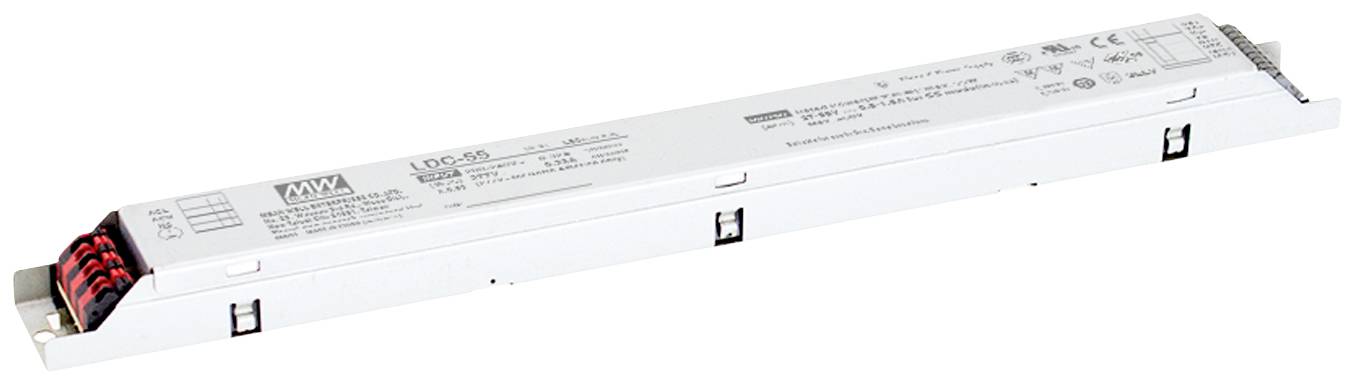

MEAN WELL LDC-55DA2 LED driver 55 W 27 - 56 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LDC-55DA2
- 27 - 56 V
Technical specifications
- Connector type, input: Plug-in terminalInput current 0.35 AConnector type, output: Plug-in terminalEfficiency 90 %Leakage current, max. 0.75 mASwitch-on current, max. 30 A
- Product type
LED driver
- Dim
(L x W x H) 320 x 30 x 21 mm
- Output voltage (max.)
56 V
- Output voltage (min.)
27 V
- Max. power
55 W
- No. of outputs
1 x
- Input voltage (max.)
295 V AC
- Min. input voltage
180 V AC
- Weight
255 g
- Power range
55 W (max)
- Width
30 mm
- Height
21 mm
- Length
320 mm
- Max. temperature
+80 °C
- Min. temperature
-25 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749277 MEAN WELL LDC-55DA2 LED driver 55 W 27 - 56 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749277 MEAN WELL LDC-55DA2 LED driver 55 W 27 - 56 V 1 pc(s)
Warranty Terms
Warranty Terms 2749277 MEAN WELL LDC-55DA2 LED driver 55 W 27 - 56 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed metal
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
