Buy MEAN WELL LDD-1000L DC/DC converter (print) 1000 mA 52 W No. of outputs: 1 x Content 1 pc(s)

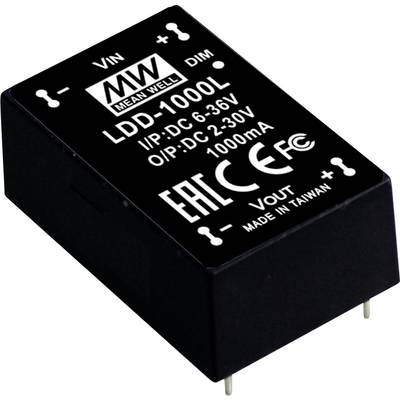

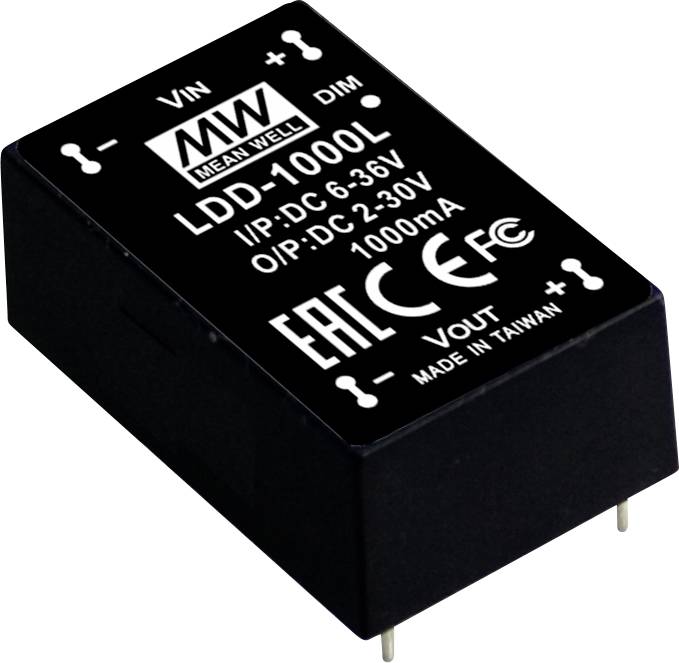

'Mean Well LDD-1000L' DC-DC converter, input 6-36V, output 1000mA, compact, black rectangular form.

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.45 / piece)

€ 5.45

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (print)

Type: LDD-1000L

Min. input voltage: 6 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Max. output current: 1000 mA

Output current (max.) - rounded: 1 A

Efficiency (max.): 95 %

: 52 W

Connection: Pins

PSU features: DC-to-DC converter

Dim: (L x W x H) 8.90 x 22.60 x 9.90 mm

Height: 9.90 mm

Length: 8.90 mm

Width: 22.60 mm

Weight: 5.60 g

Content: 1 pc(s)

No. of inputs: 1 x

Output voltage: 2-52 V/DC

Output current (details): 1000 mA

Type: Synchronised

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1292788 MEAN WELL LDD-1000L DC/DC converter (print) 1000 mA 52 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1292788 MEAN WELL LDD-1000L DC/DC converter (print) 1000 mA 52 W No. of outputs: 1 x Content 1 pc(s)

Information

Information 1292788 MEAN WELL LDD-1000L DC/DC converter (print) 1000 mA 52 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1292788 MEAN WELL LDD-1000L DC/DC converter (print) 1000 mA 52 W No. of outputs: 1 x Content 1 pc(s)

Description

DC/DC step-down converter · Constant current output · Wide input voltage range · Built-in EMI filter, (comply with EN55015 and FCC part 15) · Built-in PWM and remote ON/OFF controlontroller · Short circuit and over temperatute protections · Compact size · Potting material: (UL94-V0) · Suitable for driving illumination LED · LDD-_L: with solder pins · LDD-_LW: with wires (IP67)
