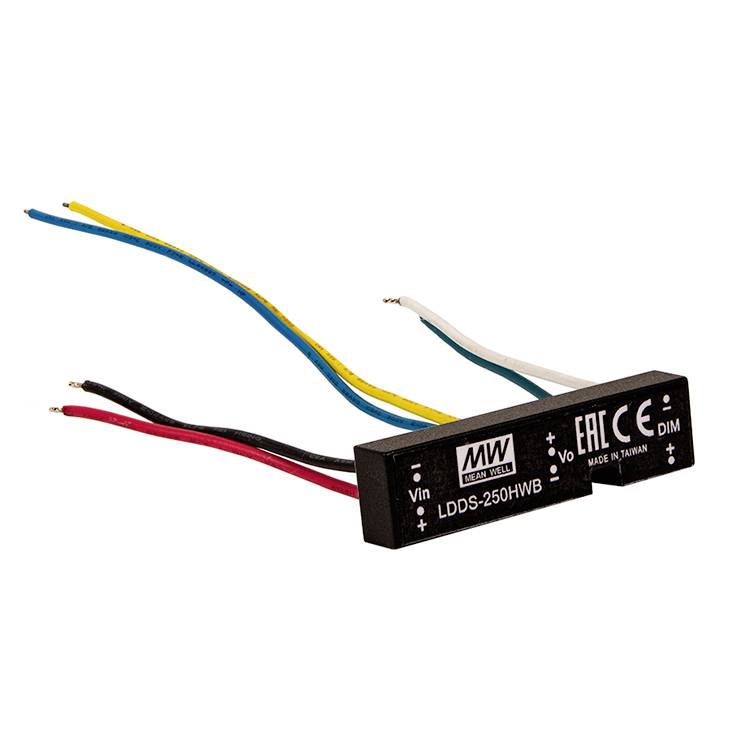

MEAN WELL LDDS-250HW LED driver 0.25 A 2 - 45 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LDDS-250HW
- 2 - 45 V
- 0.25 A
Technical specifications
- Connection type, input: Stranded wireConnection type, output: Stranded wireEfficiency 94 %
- Product type
LED driver
- Dim
(L x W x H) 47 x 12 x 7 mm
- Output voltage (max.)
45 V
- Output voltage (min.)
2 V
- Max. output current
0.25 A
- Output current (max.) - rounded
250 mA
- Input voltage (max.)
56 V DC
- Min. input voltage
12 V DC
- Weight
9.5 g
- Width
12 mm
- Height
7 mm
- Length
47 mm
- Max. temperature
+55 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749251 MEAN WELL LDDS-250HW LED driver 0.25 A 2 - 45 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749251 MEAN WELL LDDS-250HW LED driver 0.25 A 2 - 45 V 1 pc(s)
Warranty Terms
Warranty Terms 2749251 MEAN WELL LDDS-250HW LED driver 0.25 A 2 - 45 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
