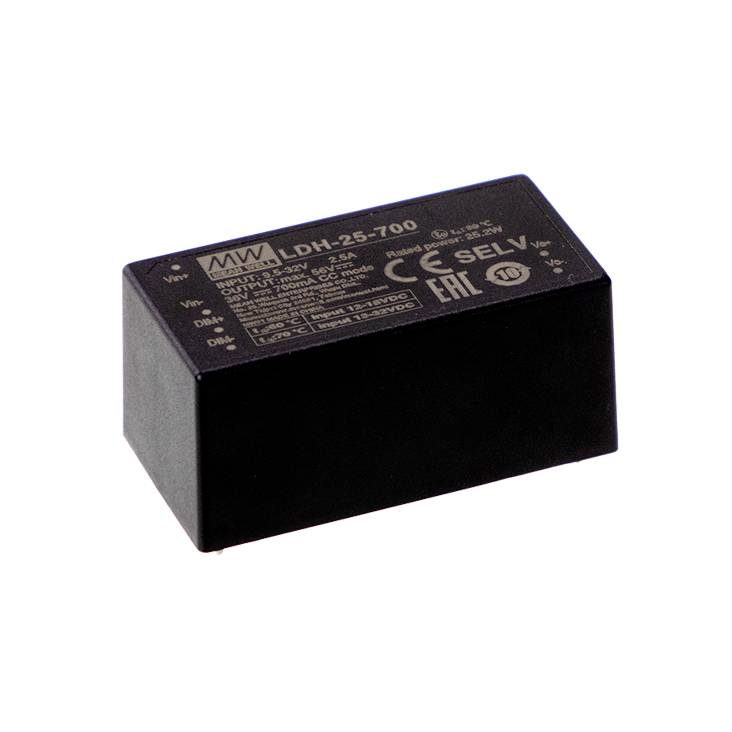

MEAN WELL LDH-25-700 LED driver 0.7 A 12.5 - 36 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LDH-25-700
- 12.5 - 36 V
- 0.7 A
Technical specifications
- Connection type, input: THTConnection type, output: THTEfficiency level 95.5 %
- Product type
LED driver
- Dim
(L x W x H) 52.40 x 27.20 x 24 mm
- Output voltage (max.)
36 V
- Output voltage (min.)
12.5 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- Input voltage (max.)
32 V DC
- Min. input voltage
9.5 V DC
- Weight
50 g
- Width
27.20 mm
- Height
24 mm
- Length
52.40 mm
- Max. temperature
+70 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749193 MEAN WELL LDH-25-700 LED driver 0.7 A 12.5 - 36 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749193 MEAN WELL LDH-25-700 LED driver 0.7 A 12.5 - 36 V 1 pc(s)
Warranty Terms
Warranty Terms 2749193 MEAN WELL LDH-25-700 LED driver 0.7 A 12.5 - 36 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
