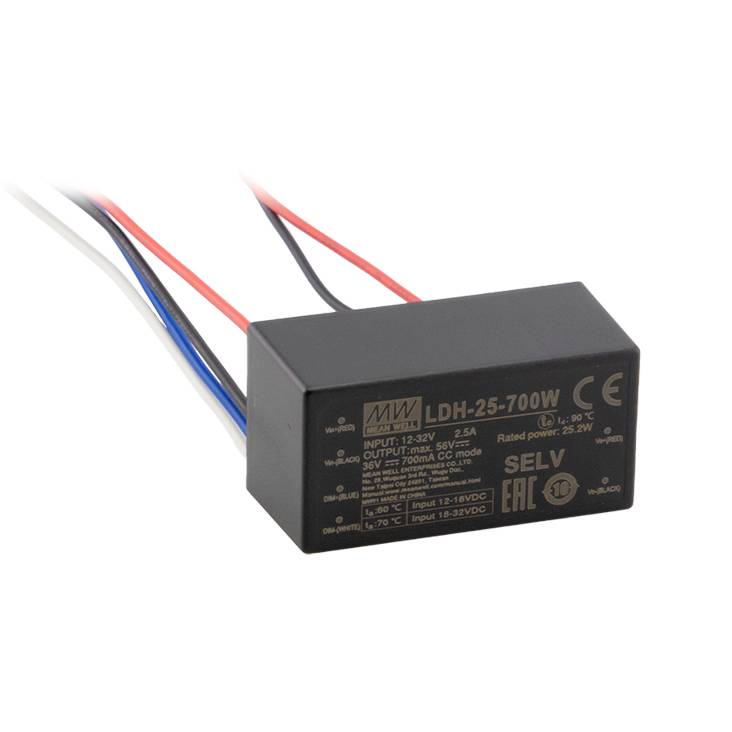

MEAN WELL LDH-25-700W LED driver 25.2 W 0.7 A 12.5 - 36 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LDH-25-700W
- 12.5 - 36 V
- 0.7 A
Technical specifications
- Connection type, input: Stranded wireConnection type, output: Stranded wireEfficiency level 95.5 %
- Product type
LED driver
- Dim
(L x W x H) 52.40 x 27.20 x 24 mm
- Output voltage (max.)
36 V
- Output voltage (min.)
12.5 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- Connection
Braid
- Max. power
25.2 W
- Output current (min.)
0.7 A
- Input voltage (max.)
32 V DC
- Min. input voltage
9.5 V DC
- Weight
57 g
- Power (min.)
25.2 W
- Power range
25.2 up to 25.2 W
- Width
27.20 mm
- Height
24 mm
- Length
52.40 mm
- Max. temperature
+70 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749194 MEAN WELL LDH-25-700W LED driver 25.2 W 0.7 A 12.5 - 36 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749194 MEAN WELL LDH-25-700W LED driver 25.2 W 0.7 A 12.5 - 36 V 1 pc(s)
Warranty Terms
Warranty Terms 2749194 MEAN WELL LDH-25-700W LED driver 25.2 W 0.7 A 12.5 - 36 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
