Buy MEAN WELL LDH-45B-350 DC/DC converter (print) 350 mA 44.1 W No. of outputs: 1 x Content 1 pc(s)

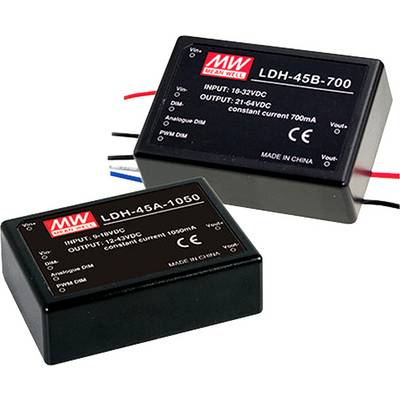

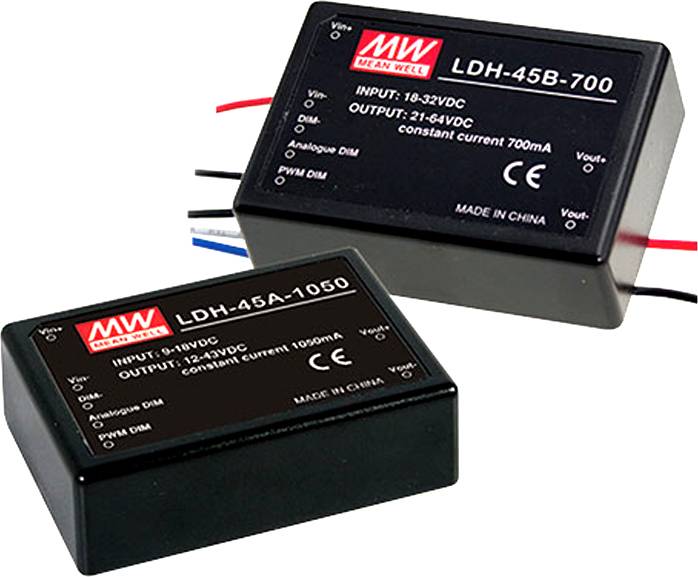

Two black electronic modules with red MW logos. At the top 'LDH-45B-700', at the bottom 'LDH-45A-1050'. They display input and output voltages.

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 14.28 / piece)

€ 14.28

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

PSU type: SMPS
Number of inputs: 1.

Product type: DC/DC converter (print)

Type: LDH-45B-350

Min. input voltage: 18 V DC

Input voltage (max.): 32 V DC

No. of outputs: 1 x

Max. output current: 350 mA

Output current (max.) - rounded: 350 mA

: 44.1 W

Connection: Pins

PSU features: DC-to-DC converter

Dim: (L x W x H) 22.70 x 75.00 x 53.00 mm

Height: 53.00 mm

Length: 22.70 mm

Width: 75.00 mm

Output voltage (max.): 126 V DC

Output voltage (min.): 21 V DC

Output current (min.): 350 mA

Weight: 138.00 g

Content: 1 pc(s)

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1292782 MEAN WELL LDH-45B-350 DC/DC converter (print) 350 mA 44.1 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1292782 MEAN WELL LDH-45B-350 DC/DC converter (print) 350 mA 44.1 W No. of outputs: 1 x Content 1 pc(s)

Information

Information 1292782 MEAN WELL LDH-45B-350 DC/DC converter (print) 350 mA 44.1 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1292782 MEAN WELL LDH-45B-350 DC/DC converter (print) 350 mA 44.1 W No. of outputs: 1 x Content 1 pc(s)

Description

DC/DC step-up converter · Constant current output · Wide input voltage range · Built-in EMI filter, (comply with EN55015) · Built-in PWM, + analog DIM, remote ON/OFF · Short circuit and over temperatute protections · Suitable for driving illumination LED · Cooling by free air convection · LDH-_: with solder pins · LDH-_W: with wires
