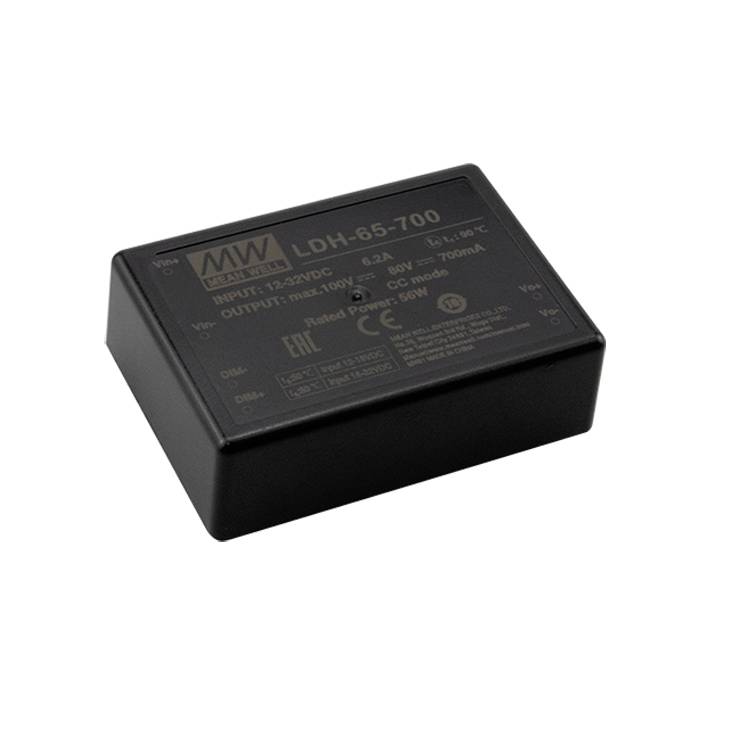

MEAN WELL LDH-65-700 LED driver 56 W 0.7 A 12.5 - 80 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LDH-65-700
- 12.5 - 80 V
- 0.7 A
Technical specifications
- Connection type, input: THTConnection type, output: THTEfficiency 95 %
- Product type
LED driver
- Dim
(L x W x H) 75 x 53 x 22.70 mm
- Output voltage (max.)
80 V
- Output voltage (min.)
12.5 V
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- Max. power
56 W
- Input voltage (max.)
32 V DC
- Min. input voltage
9.5 V DC
- Weight
152 g
- Power range
56 W (max)
- Width
53 mm
- Height
22.70 mm
- Length
75 mm
- Max. temperature
+60 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2749267 MEAN WELL LDH-65-700 LED driver 56 W 0.7 A 12.5 - 80 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749267 MEAN WELL LDH-65-700 LED driver 56 W 0.7 A 12.5 - 80 V 1 pc(s)
Warranty Terms
Warranty Terms 2749267 MEAN WELL LDH-65-700 LED driver 56 W 0.7 A 12.5 - 80 V 1 pc(s)
Description
Features
- Application: LightingHousing: Closed
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
