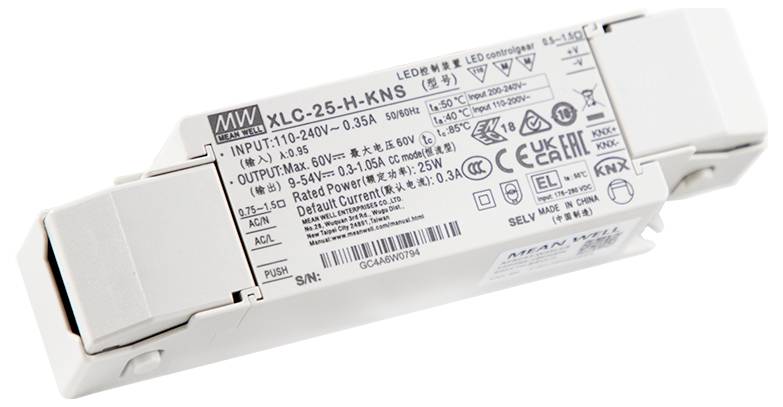

MEAN WELL LED converter 25 W 1.05 A 54 V
EAN:
Part number:
Item no:
Product type
LED converter
Power
25 W
Connection
Spring-loaded terminal
Output current (max.) - rounded
1.05 A
Output voltage (max.)
54 V
Datasheet (PDF)
Highlights & Details
AC/DC-LED POWER SUPPLY XLC-25-H-KNS
- Flicker-free, emergency light operational device, output current selectable, DC suitable, independent operating device
Technical specifications
- KNX,Push-Dimm
- Operation maintenance 50,000 h
- Min. Input voltage 100 V
- Input voltage: max. ±300 V
- Product type
LED converter
25 W
- Connection
Spring-loaded terminal
Protection class II
- Min. temperature
+85 °C
- Max. temperature
-25 °C
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Output current (min.)
0.3 A
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
Documents & Downloads
Datasheet
Datasheet 3431226 MEAN WELL LED converter 25 W 1.05 A 54 V
User & Safety Instructions
User & Safety Instructions 3431226 MEAN WELL LED converter 25 W 1.05 A 54 V
Description
The XLC-25-KN series is a 25W constant output LED driver that can operate between 300 mA and 1050 mA with an input voltage of 100-305VAC and an output current selected from the ETS database. The integrated KNX interface saves the use of a KNX DALI gateway. Thanks to the high degree of efficiency of up to 88%, operation is possible at a casing temperature of 25°C to 85°C under free air convection. Designed with the latest safety regulations, the XLC-25-KN offers greater flexibility for LED lighting applications.
