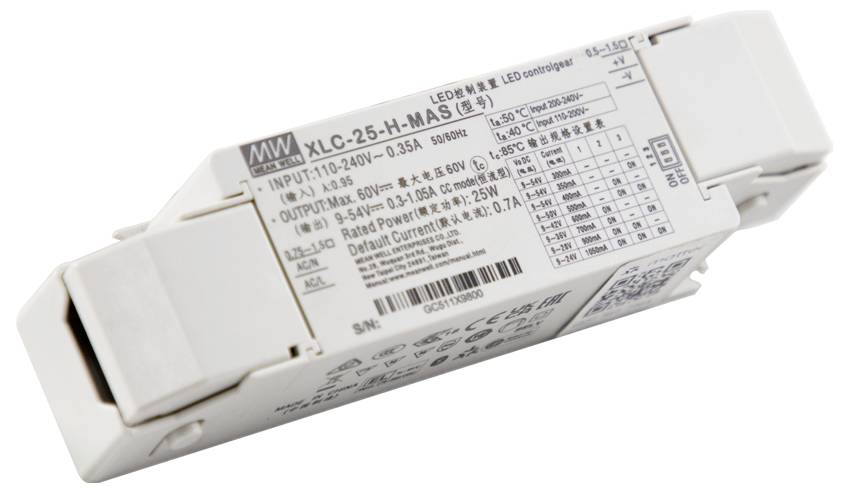

MEAN WELL LED converter 25 W 1050 mA 54 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
25 W
Connection
Spring-loaded terminal
Output current (max.) - rounded
1.05 A
Output voltage (max.)
54 V
Datasheet (PDF)
Highlights & Details
- Meets the requirements of emergency lighting (EL)
- Minimum dimming value 0.5% mat over thread network , Matt 1.3 specification
- Output current can be set via DIP switch
- Output current selectable, DC compatible, emergency light operation device, flicker-free, programmable output current
- Meets the requirements of emergency lighting (EL)
- Minimum dimming value 0.5% mat over thread network , Matt 1.3 specification
- Output current can be set via DIP switch
- Output current selectable, DC compatible, emergency light operation device, flicker-free, programmable output current
Technical specifications
- Interfaces: Mat, push-DIMM
- Operation maintenance 50,000 h
- Min. Input voltage AC 100
- Max. Input voltage AC 305
- Product type
LED converter
25 W
- LED features
dimmable
- Connection
Spring-loaded terminal
Protection class II
- Min. temperature
+85 °C
- Max. temperature
-25 °C
- Dim
(L x W x H) 147 x 40 x 32 mm
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Height
32 mm
- Length
147 mm
- Width
40 mm
- Output current (min.)
300 mA
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
Documents & Downloads
Datasheet
Datasheet 3431228 MEAN WELL LED converter 25 W 1050 mA 54 V dimmable
User & Safety Instructions
User & Safety Instructions 3431228 MEAN WELL LED converter 25 W 1050 mA 54 V dimmable
Description
The XLC-25-MA series is a 25W constant output LED driver that can be operated with 100-305VAC and has a DIP switch output current of between 300 mA and 1050 mA. Thanks to the high degree of efficiency of up to 88%, it can be operated at a casing temperature of -25°C to -85°C under free air convection. Designed with the latest safety regulations, the XLC-25-MA series features a wireless Matter dimming function. It offers more flexibility for LED lighting applications.
